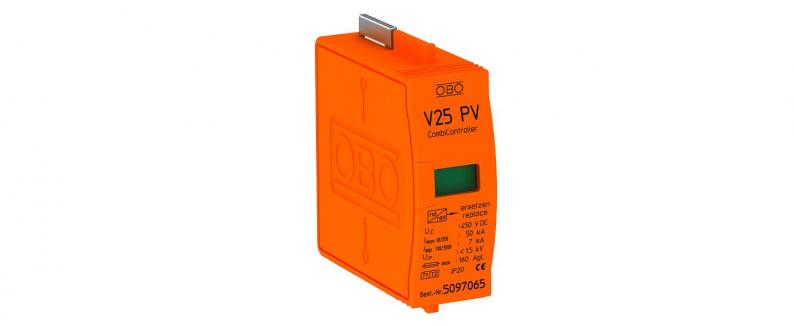

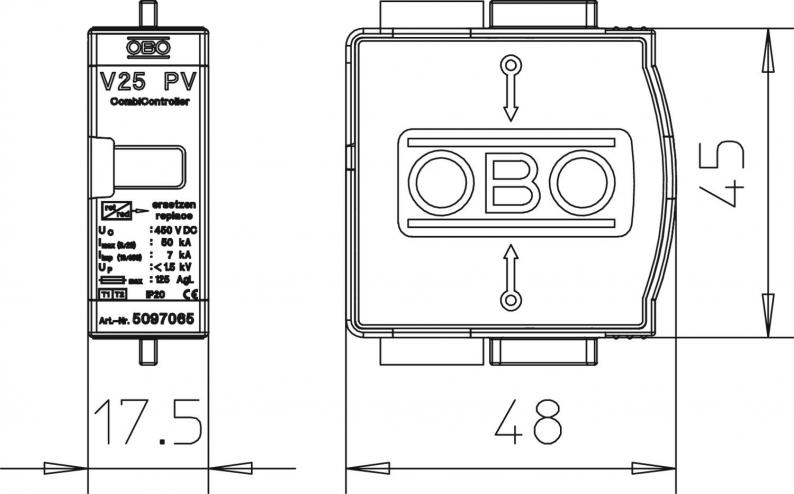

PV CombiController V25, plug-in arrester, type 1+2
Type V25-B+C 0-450PV
|Item no. 5097065
|EAN 4012195708896
Item no. / Type
5097065 / V25-B+C 0-450PV
Koruma sınıfı
IP20
Maximum continuous voltage AC
385 V
Pole version
1
Smallest selling unit: 1 piece
1piece
piece
Description
CombiController upper part - type 1+2, combination arrester for photovoltaic systems
• For surge protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Arresting capacity to 7 kA (10/350) and 50 kA (8/20) per pole
• Low DC voltage protection level: < 1.5 kV per pole (Y circuit: 3.0 kV and Voc max = 900 V DC)
• Plug-in arrester with thermodynamic cut-off unit and visual function display
• Encapsulated, zinc oxide varistor arrester for use in distributor housings
• High current carrying capacity with long lifespan
Application: PV systems with lightning protection system
• For surge protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Arresting capacity to 7 kA (10/350) and 50 kA (8/20) per pole
• Low DC voltage protection level: < 1.5 kV per pole (Y circuit: 3.0 kV and Voc max = 900 V DC)
• Plug-in arrester with thermodynamic cut-off unit and visual function display
• Encapsulated, zinc oxide varistor arrester for use in distributor housings
• High current carrying capacity with long lifespan
Application: PV systems with lightning protection system
Technical data
Technical data
| Söndürmeli | no |
|---|---|
| Cihazda sinyalizasyon | Visual |
| Koruma sınıfı | IP20 |
| Remote signalling | no |
| Lightning surge current (10/350 μs) | 7 kA |
| Maximum continuous voltage AC | 385 V |
| Maximum continuous voltage DC | 450 V |
| Nominal discharge current (8/20 µs) | 30 kA |
| Pole version | 1 |
| Max. mains-side overcurrent protection | 160 |
| Version for | 1-pole, PV upper part with Y base to 900 V DC |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 80 °C |
| SPD to IEC 61643-1 | Class I+II |
| EN 61643-11 standardına göre talep sınıfı | Type 1+2 |
| Lightning protection zone LPZ | 0→2 |
| Maximum discharge current (8/20 μs) | 50 kA |
| Devreye girme süresi | <25 ns |
| Maximum back-up fuse | 160 A |
| Kullanılabilir sıcaklık aralığı min. | -40 °C |
| Kullanılabilir sıcaklık aralığı maks. | 80 °C |
| Boyut | 450V DC |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,169 kg CO2e / 1 Piece |
|---|
