Quick clip, aluminium
Type ALQ M16
|Item no. 2149916
|EAN 4012196409235
Item no. / Type
Anma boyutu/ Metin
Smallest selling unit: 100 piece
100piece
piece
Description
OBO Quick clip, type ALQ M, for all metric ALU pipe systems, as well as light-duty and heavy-duty insulation pipes. Suitable for mounting the OBO pipe system, material: aluminium. Pipe centring aids allow optimal attachment of the pipe and automatically turn the clip into the correct position.
Slot for side alignment during mounting with wood screw or knock-in anchor.
Recommended fastening spacing 50−60 cm.
Slot for side alignment during mounting with wood screw or knock-in anchor.
Recommended fastening spacing 50−60 cm.
Technical data

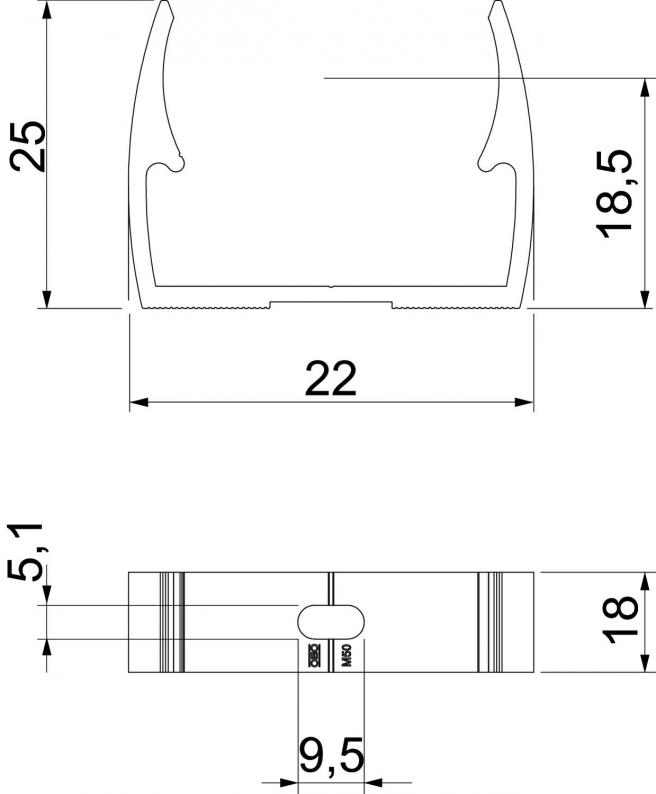

Dimensions
| Dimension A | 22 mm |
|---|---|
| Dimension B | 18 mm |
| Dimension H | 25 mm |
| Dimension F | 9,5 mm |
| Dimension h | 18,5 mm |
| Dimension E | 5,1 mm |
Technical data
| Anma boyutu/ Metin | 16 |
|---|---|
| Halojen İçermez | hayır |
| Referans değerler | 55 N |
| UV-resistant | evet |
| Expandable | hayır |
| Closed | hayır |
| Number of cables/pipes | 1 |
| With inlay | hayır |
| Fastening type | Vida deliği |
| Clamping range D, min. | 16 mm |
| Clamping range D, max. | 16 mm |
| Kullanılabilir sıcaklık aralığı min. | -25 °C |
| Kullanılabilir sıcaklık aralığı maks. | 90 °C |
| Boyut | M16 |
| Material | Aluminium |
| Resistance to impact | 2 J |
| Resistance to lateral load | 105 N |
| Resistance to axial load | 15 N |
| Resistance against corrosion | High |
Environmental Data
| Packaging without plastic | evet |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,1324 kg CO2e / 1 Adet |
|---|
