Quick clip, aluminium
Type ALQ M20
|Item no. 2149920
|EAN 4012196409242
Item no. / Type
Nominal size
Smallest selling unit: 100 piece
100piece
piece
Description

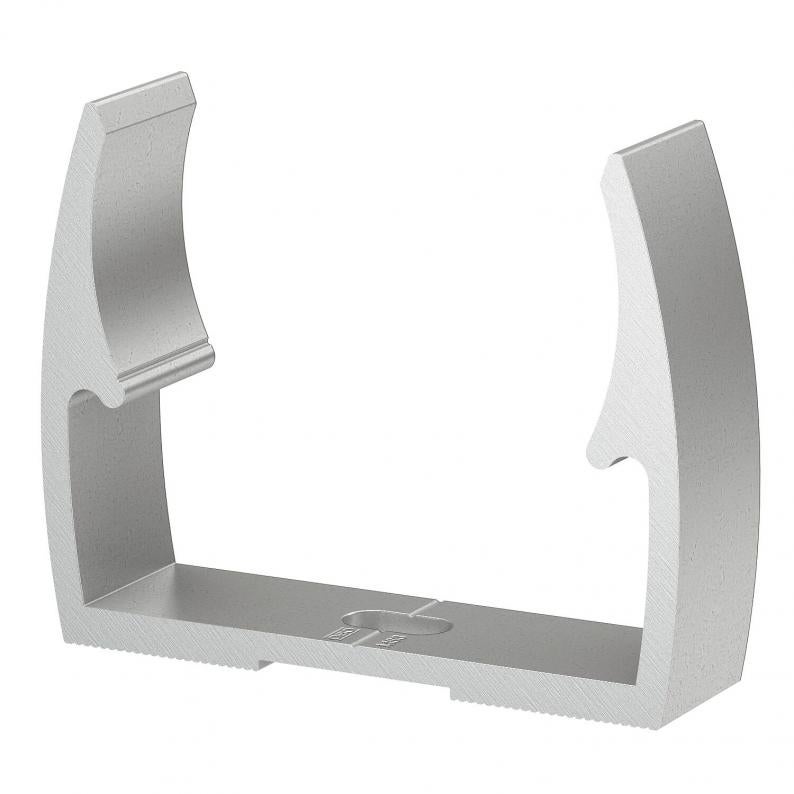

OBO Quick clip, type ALQ M, for all metric ALU pipe systems, as well as light-duty and heavy-duty insulation pipes. Suitable for mounting the OBO pipe system, material: aluminium. Pipe centring aids allow optimal attachment of the pipe and automatically turn the clip into the correct position.
Slot for side alignment during mounting with wood screw or knock-in anchor.
Recommended fastening spacing 50−60 cm.
Slot for side alignment during mounting with wood screw or knock-in anchor.
Recommended fastening spacing 50−60 cm.
Technical data

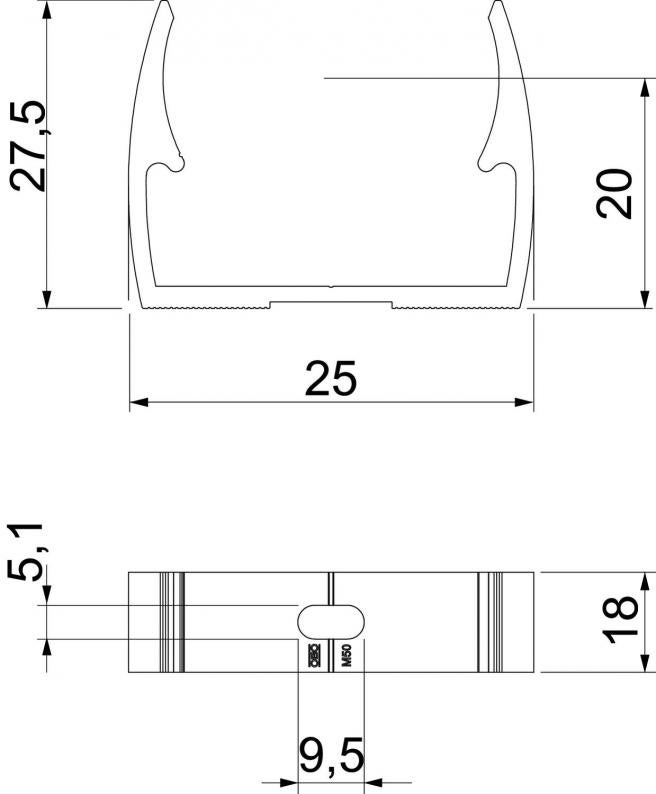

Dimensions
| Dimension A | 25 mm |
|---|---|
| Dimension B | 18 mm |
| Dimension H | 27,5 mm |
| Dimension F | 9,5 mm |
| Dimension h | 20 mm |
| Dimension E | 5,1 mm |
Technical data
| Nominal size | 20 |
|---|---|
| Halogen-free | no |
| Pull-out value | 75 N |
| UV-resistant | yes |
| Expandable | no |
| Closed | no |
| Number of cables/pipes | 1 |
| With inlay | no |
| Fastening type | Screw hole |
| ROHS-conformant | yes |
| Clamping range D, min. | 20 mm |
| Clamping range D, max. | 20 mm |
| Permitted temperature range, min. | -25 °C |
| Permitted temperature range, max. | 90 °C |
| Dimension | M20 |
| Material | Aluminium |
| Resistance to impact | 2 J |
| Resistance to lateral load | 125 N |
| Resistance to axial load | 25 N |
| Resistance against corrosion | High |
| Product series | Quick clip range |
Environmental Data
0,1511 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1511 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,1511 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Nominal size
Item no.
ALQ M16
16
2149916
ALQ M20
20
2149920
ALQ M25
25
2149925
ALQ M32
32
2149932
ALQ M40
40
2149940
ALQ M50
50
2149950
ALQ M63
63
2149963
