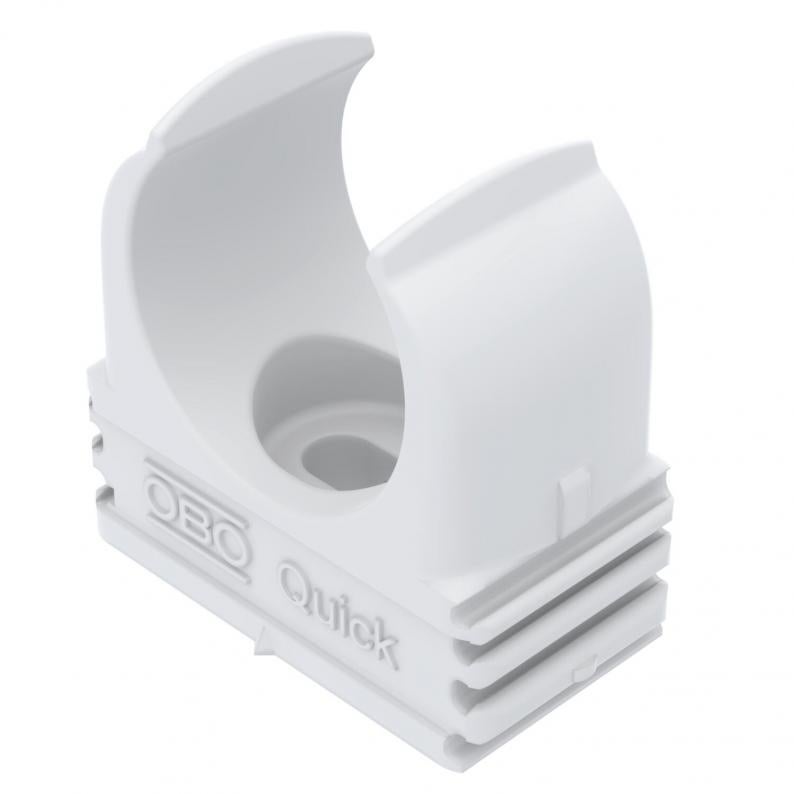

Quick clip, flame-resistant, pure white

Quick clip, flame-resistant, pure white

Type 2955 F M20 RW
|
Item no. 2149357
|
EAN 4012195586036
Show all variants
Item no. / Type
Nominal size

Smallest selling unit: 100 piece

piece

Description

Flame-resistant, flush-mounted clip to accept metric steel armoured pipes and heavy-duty insulating pipes, as well as Quick-Pipe® electrical installation pipes. Universal fastening options on walls and ceilings, both in indoor and protected outdoor areas. With slot for side alignment during mounting with wood screw or knock-in anchor. Toolless pipe mounting. Can also be arranged with OBO Multi-Quick or proQuick clip. M16 - M32 size can be screwed onto M6 thread. Recommended fastening spacing 50–60 cm, for max. extraction values F at a room temperature of 20 °C, see the table.
  • Indication of metric products
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 750 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Thread metric
  • CO₂ footprint (PCF)

Technical data

Dimensions

Dimension A30,3 mm
Dimension B16 mm
Dimension H29,5 mm
Dimension C14 mm
Dimension F4,2 mm
Dimension h10 mm
Dimension E9 mm
Dimension D19,4 mm

Technical data

Nominal sizeM20
Halogen-freeyes
Pull-out value75 N
UV-resistantno
Expandableyes
Closedno
Number of cables/pipes1
With inlayno
Fastening typeScrew hole
Clamping range D, min.20 mm
Clamping range D, max.20 mm
Flame-resistantAcc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C
DimensionM20
MaterialPolypropylene
ColourPure white; RAL 9010

Environmental Data

0,014 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,014 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (2)
Product images (2)
Tender specifications (1)

Variants

Nominal size
2955 F M16 RW
Item no.
2149351
Nominal size
M16
2955 F M20 RW
Item no.
2149357
Nominal size
M20
2955 F M25 RW
Item no.
2149363
Nominal size
M25
2955 F M32 RW
Item no.
2149369
Nominal size
M32
2955 F M40 RW
Item no.
2149375
Nominal size
M40
