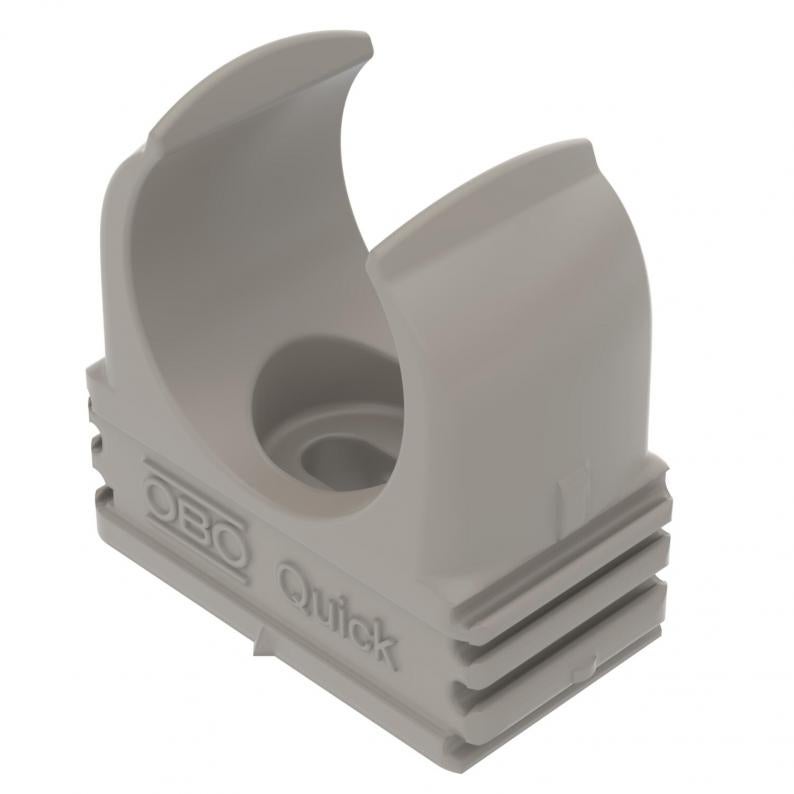

Quick Clip, flame-resistant, stone grey

Quick Clip, flame-resistant, stone grey

Type 2955 F M20 STGR
|
Item no. 2149309
|
EAN 4012195585251
Show all variants
Item no. / Type
Nominal size

Smallest selling unit: 100 piece

piece

Description

Flame-resistant, flush-mounted clip to accept metric steel armoured pipes and heavy-duty insulating pipes, as well as Quick-Pipe® electrical installation pipes. Universal fastening options on walls and ceilings, both in indoor and protected outdoor areas. With slot for side alignment during mounting with wood screw or knock-in anchor. Toolless pipe mounting. Can also be arranged with OBO Multi-Quick or proQuick clip. M16 - M32 size can be screwed onto M6 thread. Recommended fastening spacing 50–60 cm, for max. extraction values F at a room temperature of 20 °C, see the table.
  • Indication of metric products
  • Thread metric
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 750 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Dimension A30,3 mm
Dimension B16 mm
Dimension H29,5 mm
Dimension C14 mm
Dimension F4,2 mm
Dimension h10 mm
Dimension E9 mm
Dimension D19,4 mm

Technical data

Nominal sizeM20
Halogen-freeyes
Pull-out value75 N
UV-resistantno
Expandableyes
Closedno
Number of cables/pipes1
With inlayno
Fastening typeScrew hole
Flame-resistantAcc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C
DimensionM20
MaterialPolypropylene
ColourStone grey; RAL 7030

Environmental Data

0,0151 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,0151 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0151 kg CO₂e
Determination date of CO2 value2025-09-26T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Nominal size
2955 F M16 STGR
Item no.
2149303
Nominal size
M16
2955 F M20 STGR
Item no.
2149309
Nominal size
M20
2955 F M25 STGR
Item no.
2149315
Nominal size
M25
2955 F M32 STGR
Item no.
2149321
Nominal size
M32
2955 F M40 STGR
Item no.
2149327
Nominal size
M40
2955 F M50 STGR
Item no.
2149333
Nominal size
M50
2955 F M63 STGR
Item no.
2149339
Nominal size
M63
