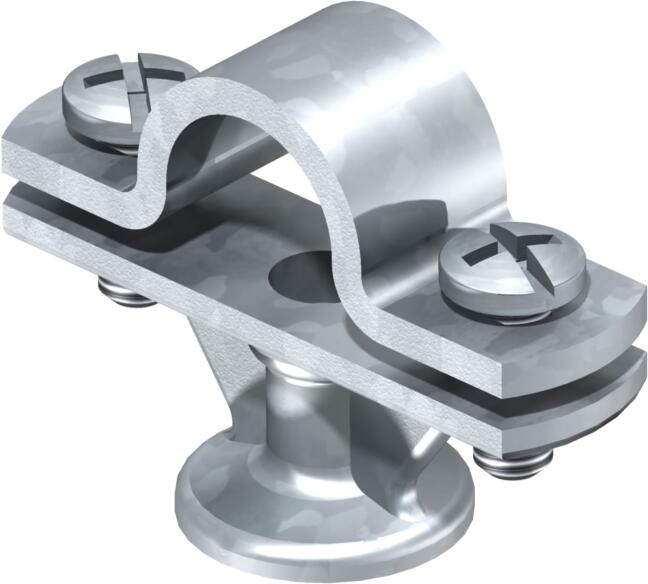

Rod holder, 16 mm
Type 113 Z-16
|Item no. 5412609
|EAN 4012195429616
Item no. / Type
5412609 / 113 Z-16
Uyumluluk
Rd 16 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• For air-termination and earth entry rods Rd 16
• Installed with crossbar and hexagonal bolts M6 x 16
• With female thread M8 or through hole Ø 7 mm
• Installed with crossbar and hexagonal bolts M6 x 16
• With female thread M8 or through hole Ø 7 mm
Technical data
Technical data
| Thread metric | 8 |
|---|---|
| Material of the crossbar | Die-cast zinc |
| Material of the base | Die-cast zinc |
| Rod fastening type | With screw clip |
| Holder fastening type | Drill hole with M thread |
| Uyumluluk | Rd 16 mm |
| Boyut | 16mm |
| Surface | galvanised |
| Material | Die-cast zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,2657 kg CO2e / 1 Piece |
|---|
