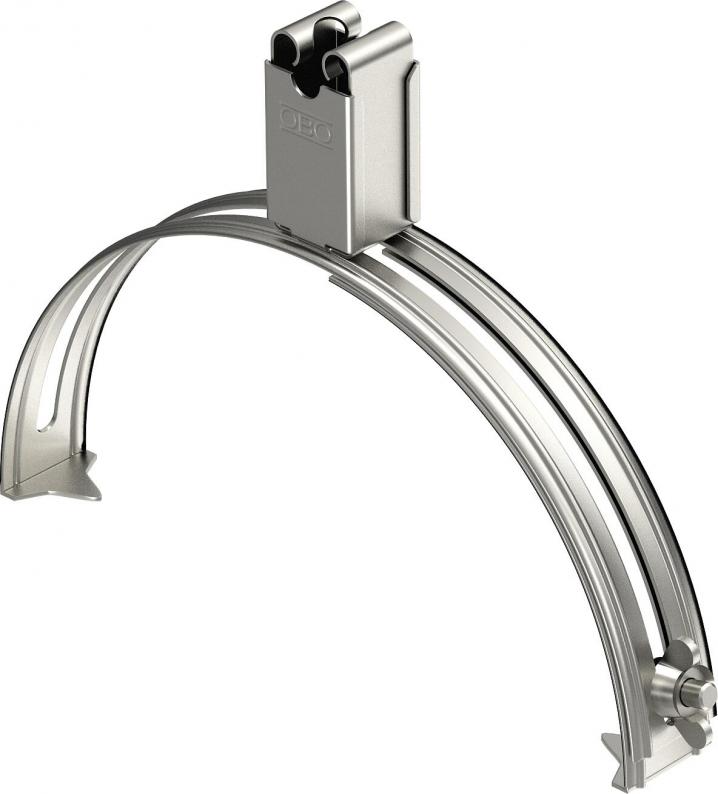

Roof conductor holder for ridge tiles, 185−260 mm, Rd 8, A2
Type 132 VA 35
|Item no. 5202836
|EAN 4012195784920
Item no. / Type
5202836 / 132 VA 35
Mounting height
35 mm
Fit
Rd 8 mm
Smallest selling unit: 20 piece
20piece
piece
Description
• Adjustable width from 185-260 mm
• Fast installation using wing screw
• Fast installation using wing screw
Technical data
Technical data
| Mounting height | 35 mm |
|---|---|
| Conductor diameter, min. | 8 |
| Conductor diameter, max. | 8 |
| Conductor fastening type | With clip |
| Application | Ridge |
| Mounting type | Tensionable |
| Fit | Rd 8 mm |
| Clamping range D, min. | 185 mm |
| Clamping range D, max. | 260 mm |
| Dimension | 35 mm |
| Material | Stainless steel 1.4301 |
Environmental Data
0,6483 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6483 kg CO2e / 1 Piece |
|---|
