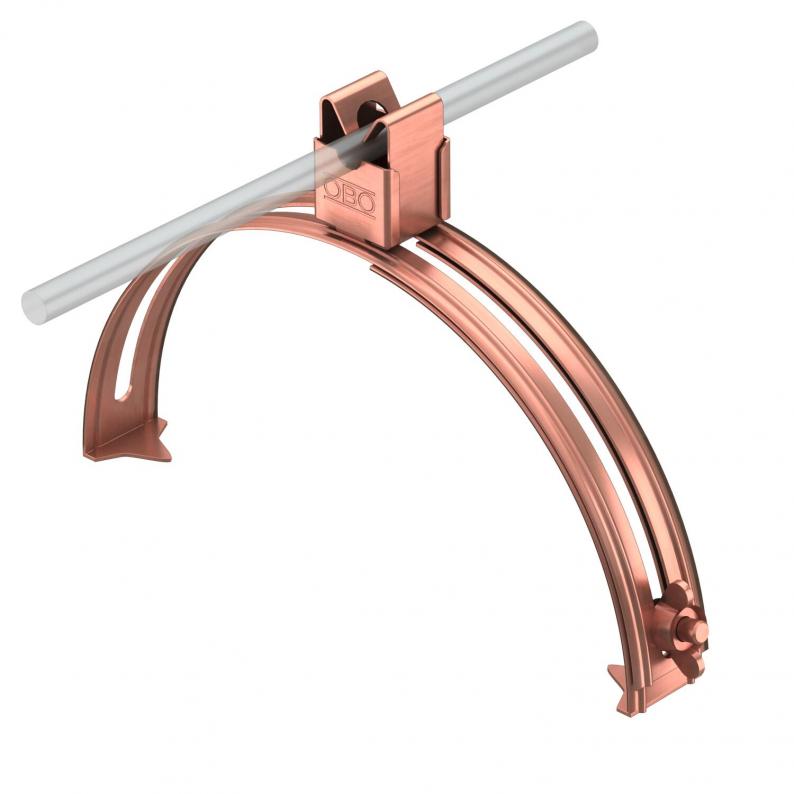

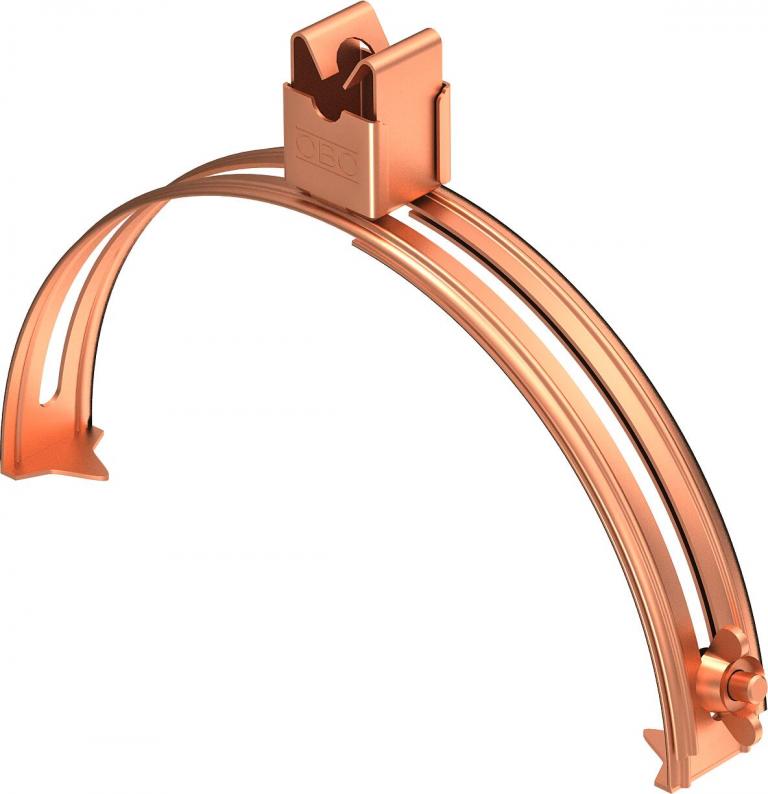

Roof conductor holder for ridge tiles, 185−260 mm, Rd 8 CU
Type 132 CU
|Item no. 5202868
|EAN 4012195902171
Item no. / Type
5202868 / 132 CU
Montaj yüksekliği
20 mm
Uyumluluk
Rd 8 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• Adjustable width from 185-260 mm
• Fast installation using wing screw
• Fast installation using wing screw
Technical data
Technical data
| Montaj yüksekliği | 20 mm |
|---|---|
| Conductor diameter, min. | 8 |
| Conductor diameter, max. | 8 |
| Conductor fastening type | With clip |
| Application | Ridge |
| Mounting type | Tensionable |
| Uyumluluk | Rd 8 mm |
| Clamping range D, min. | 185 mm |
| Clamping range D, max. | 260 mm |
| Boyut | 8mm |
| Material | Copper |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,3935 kg CO2e / 1 Piece |
|---|
