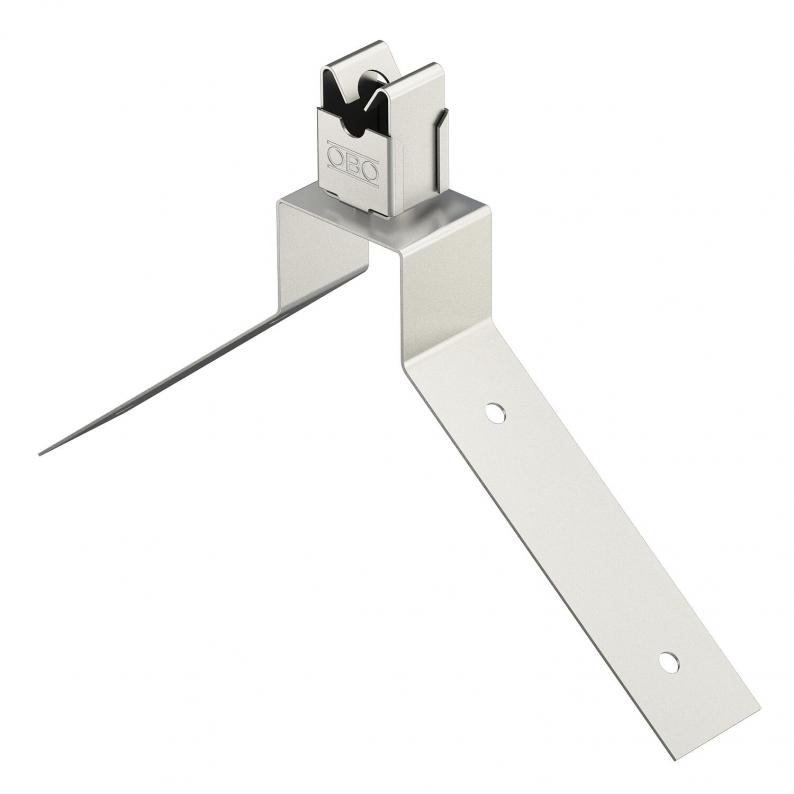

Roof conductor holder for ridge tiles, metal roofs, Rd 8
Type 132 P VA
|Item no. 5202510
|EAN 4012196379965
Item no. / Type
5202510 / 132 P VA
Mounting height
20 mm
Fit
Rd 8 mm
Smallest selling unit: 20 piece
20piece
piece
Description
• For round conductors Rd 8
• Suitable for metal roofs
• Suitable for metal roofs
Technical data
Technical data
| Mounting height | 20 mm |
|---|---|
| Conductor diameter, min. | 8 |
| Conductor diameter, max. | 8 |
| Conductor fastening type | With clip |
| Application | Ridge |
| Mounting type | Tensionable |
| Fit | Rd 8 mm |
| Clamping range D, min. | 8 mm |
| Clamping range D, max. | 8 mm |
| Dimension | 8mm |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
Environmental Data
0,5343 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5343 kg CO2e / 1 Piece |
|---|
