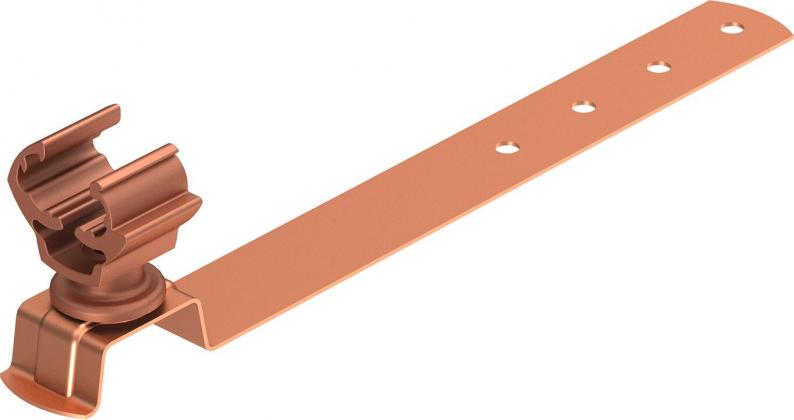

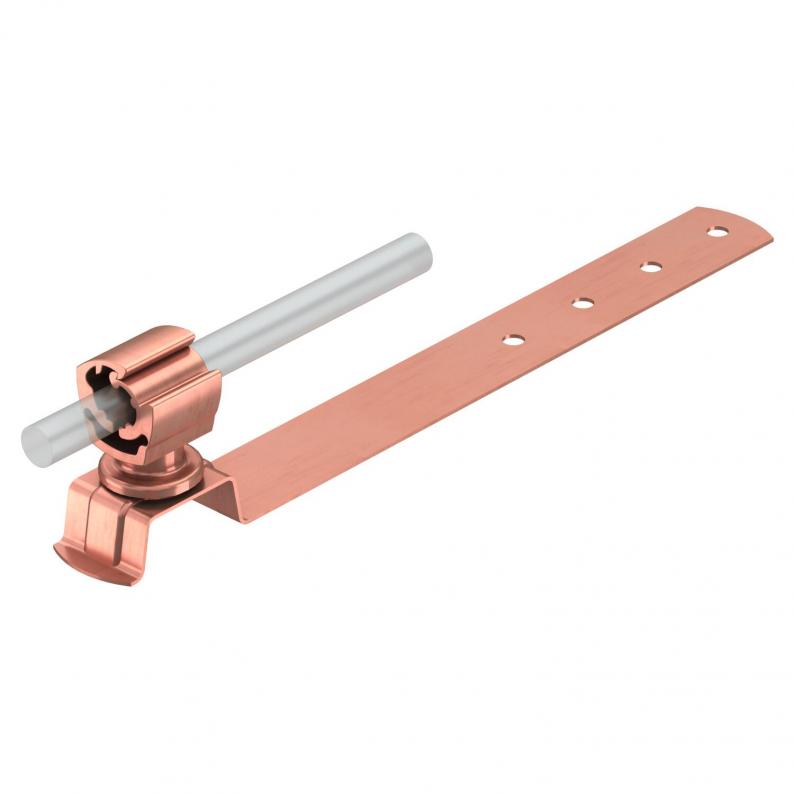

Roof conductor holder for tiled roofs, Rd 8−10
Type 157 FK-CU 230
|Item no. 5216184
|EAN 4012195902652
Item no. / Type
5216184 / 157 FK-CU 230
Length
230 mm
Uyumluluk
Rd 8-10 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• Conductor holder of polyamide
• Including drill hole in bottom section for quick installation
• Including drill hole in bottom section for quick installation
Technical data
Dimensions
| Length | 230 mm |
|---|---|
| Dimension L | 230 mm |
Technical data
| Montaj yüksekliği | 40 mm |
|---|---|
| Conductor diameter, min. | 8 |
| Conductor diameter, max. | 10 |
| Conductor fastening type | With clamp clip |
| Application | Roof surface |
| Mounting type | Screw-on |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 8mm |
| Material | Copper |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,2218 kg CO2e / 1 Piece |
|---|
