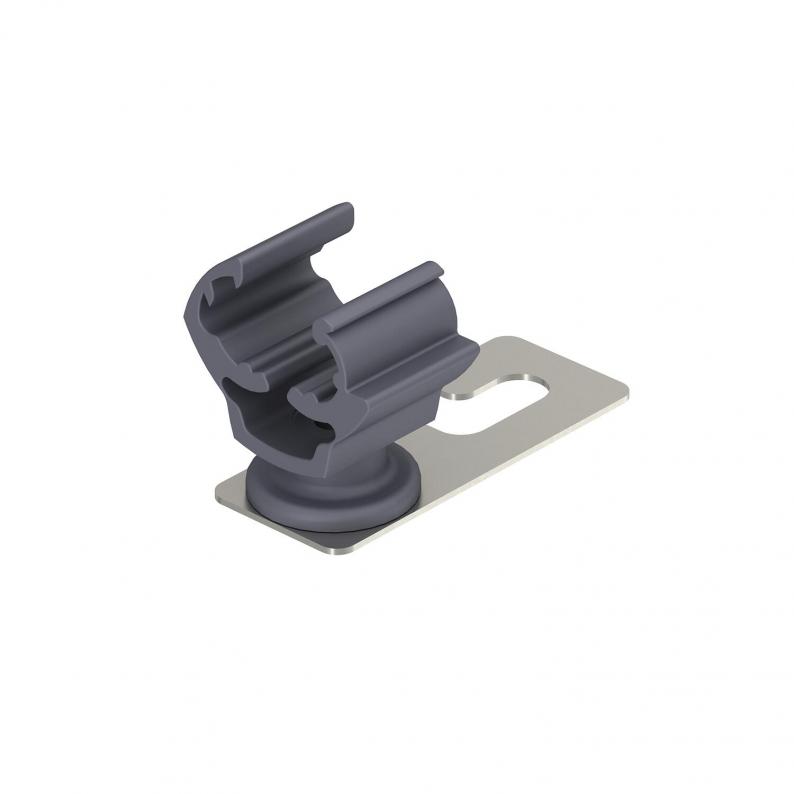

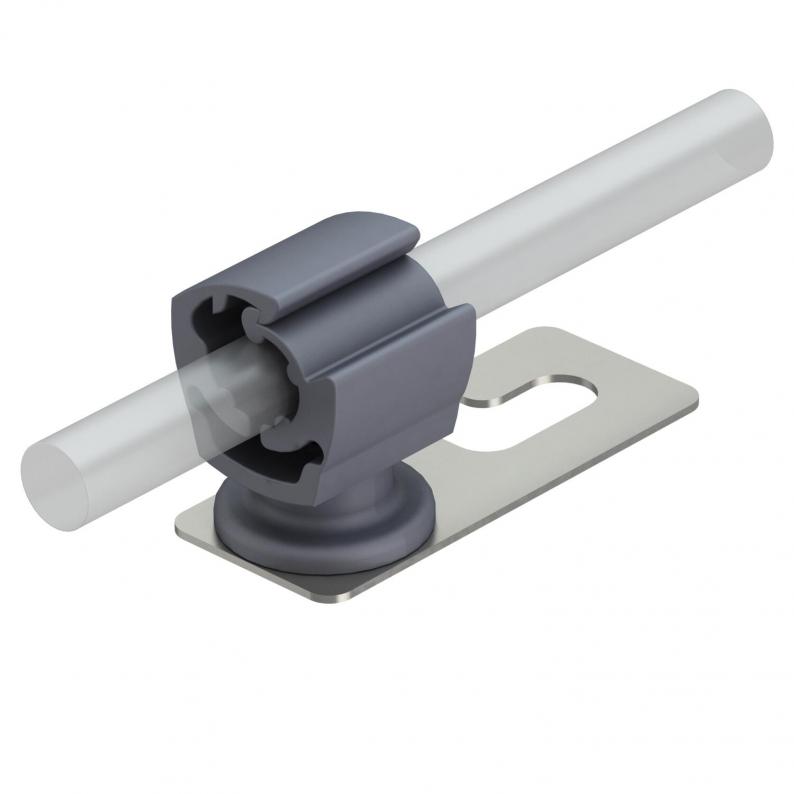

Roof conductor holder for tiled, slated and corrugated roofs, Rd 8−10
Type 159 K-VA
|Item no. 5216818
|EAN 4012195813255
Item no. / Type
5216818 / 159 K-VA
Mounting height
21 mm
Fit
Rd 8-10 mm
Smallest selling unit: 20 piece
20piece
piece
Description
• Bottom section stainless steel (V2A)
• Bottom section with Ø 8.5 mm slot
• Conductor holder of polyamide
• Bottom section with Ø 8.5 mm slot
• Conductor holder of polyamide
Technical data

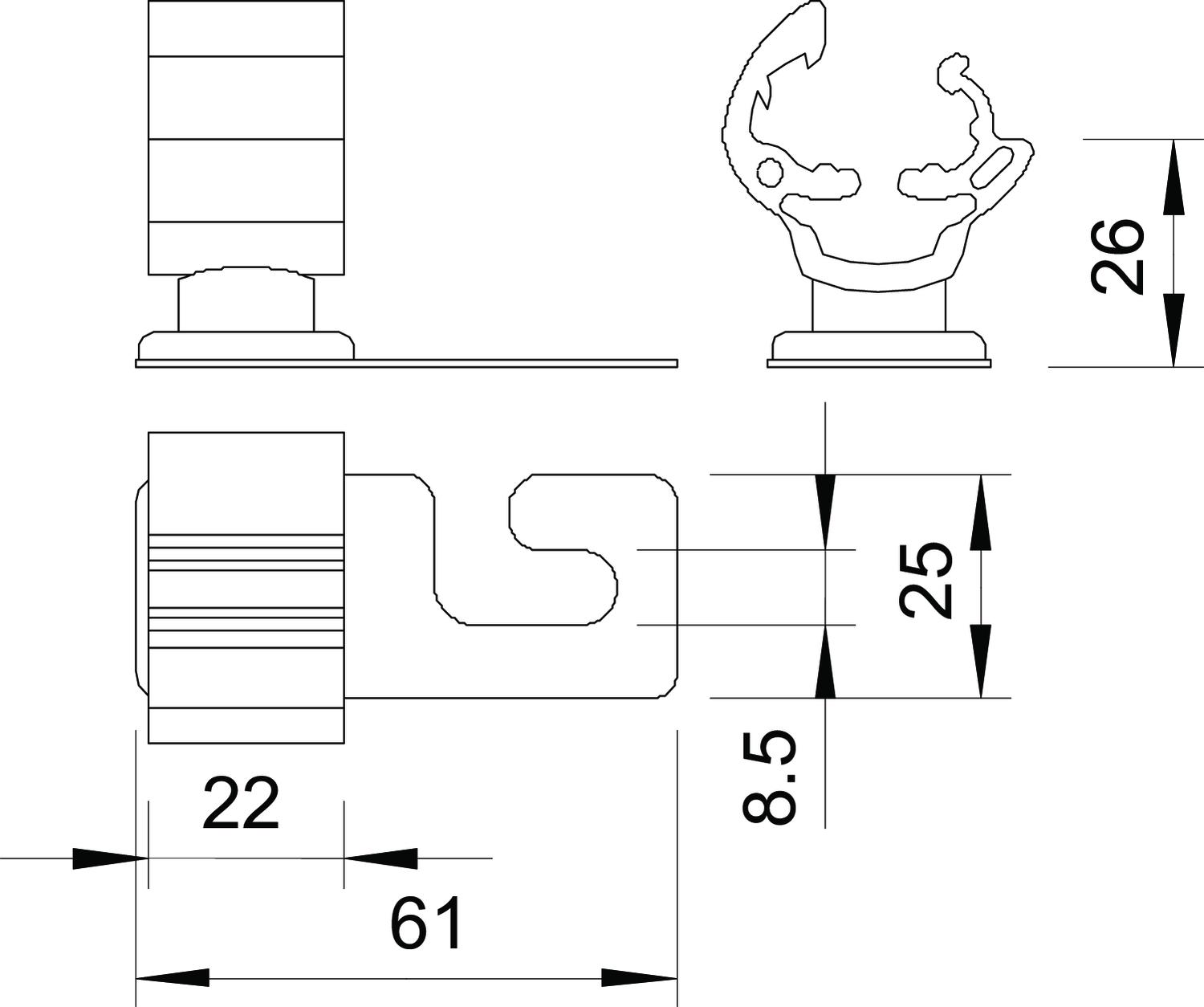

Dimensions
| Length | 61 mm |
|---|---|
| Width | 25 mm |
| Height | 38,5 mm |
Technical data
| Mounting height | 21 mm |
|---|---|
| Conductor diameter, min. | 8 |
| Conductor diameter, max. | 10 |
| Conductor fastening type | With clamp clip |
| Application | Corrugated roof |
| Mounting type | Screw-on |
| Fit | Rd 8-10 mm |
| Dimension | 8-10mm |
| Material | Stainless steel 1.4301 |
Environmental Data
0,1204 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1204 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,1204 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
| Packaging without plastic | yes |
|---|
