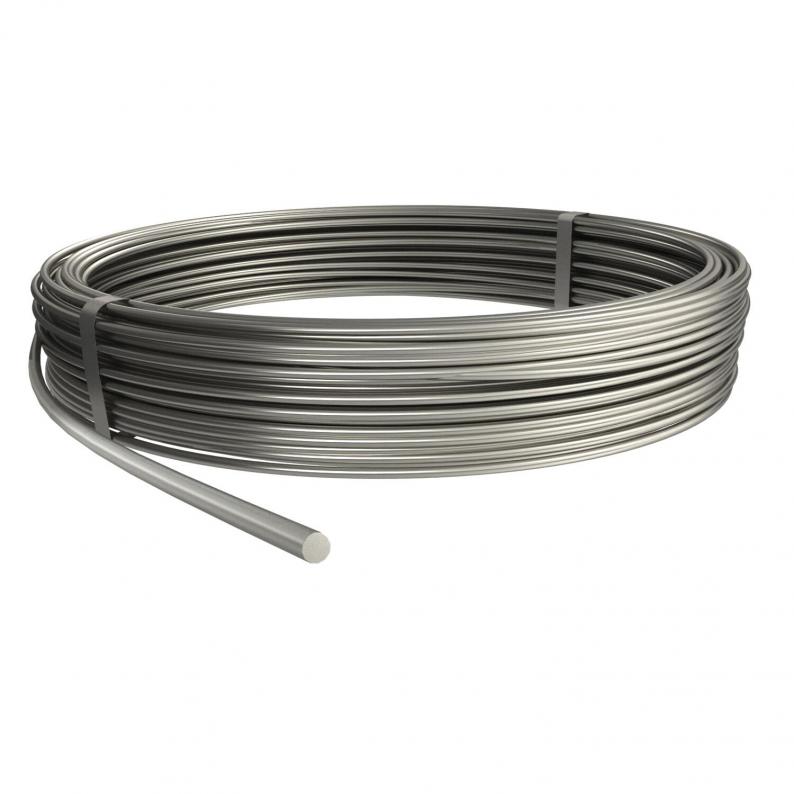

Round conductor, stainless steel A4
Type RD 10-V4A
|Item no. 5021642
|EAN 4012195902058
Item no. / Type
Diameter
Normal halka (kg)
Kesit
Normal halka (m)
Material
Smallest selling unit: 50 m
50m
m
Description
RD ...-VA: Yuvarlak iletken (DIN EN 50164-2'ye uygun)
• VDE 0185-305 (IEC 62305) standardına uygundur
• Toprak altı uygulamalar için alaşımlı çelik, V4A
• VDE 0185-305 (IEC 62305) standardına uygundur
• Toprak altı uygulamalar için alaşımlı çelik, V4A
Technical data
Technical data
| Diameter | 10 mm |
|---|---|
| Normal halka (kg) | 32 |
| High voltage-resistant, insulated version | hayır |
| Number of individual wires | 1 |
| Material property | Miscellaneous |
| Material jacket | Yok |
| Kesit | 78 mm² |
| Normal halka (m) | 50 |
| Boyut | 10mm |
| Material | Stainless steel 1.4571/1.4404 |
| Length tolerance ± | 5 % |

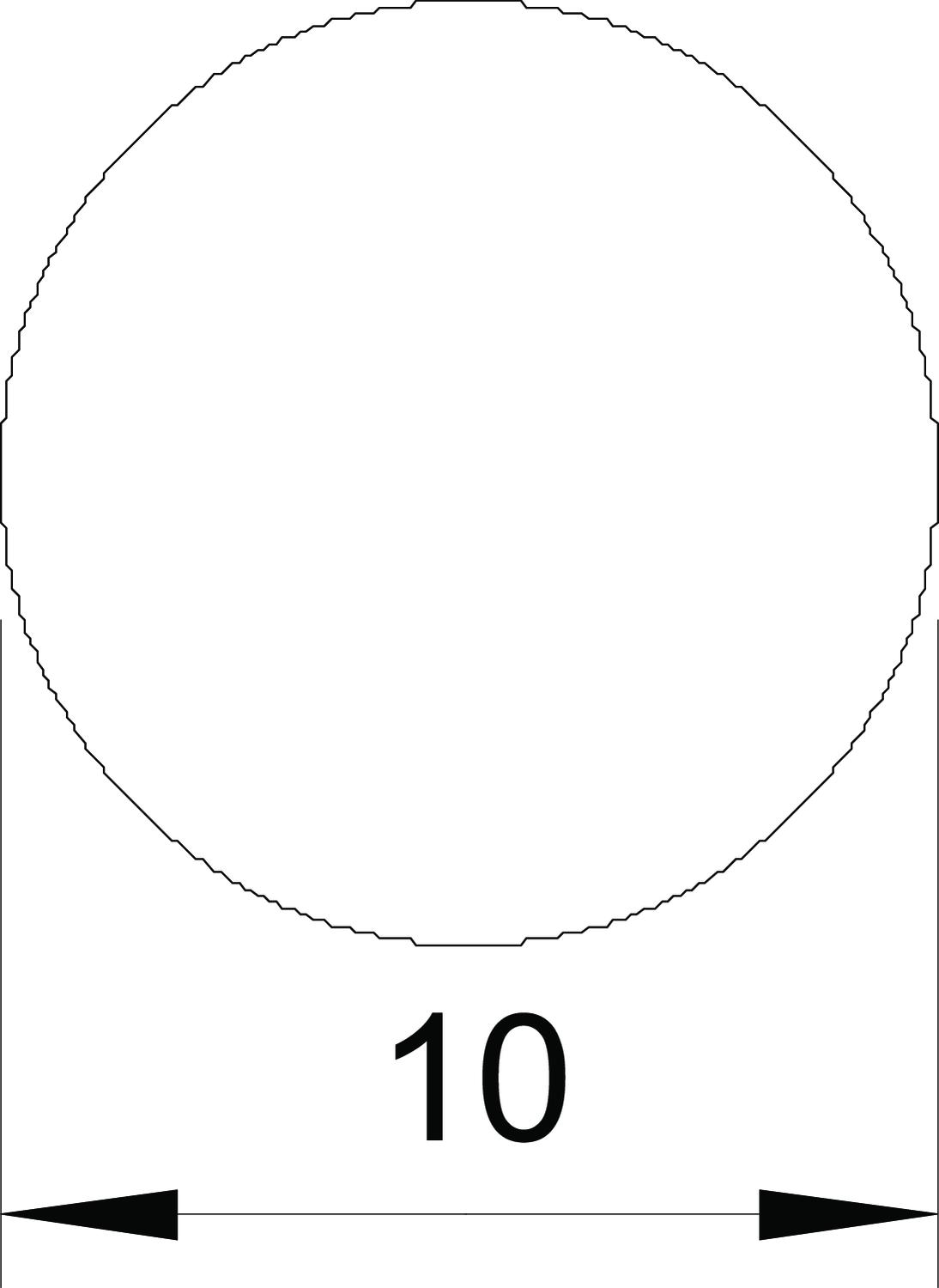

Dimensions
| Dimension D | 10 mm |
|---|
Accessories
Mounting accessories
Article
Type
Item no.
Amount
252 8-10 V4A
5312318
Smallest selling unit: 10 piece
10piece
piece
252 8-10x16 V4A
5312346
Smallest selling unit: 10 piece
10piece
piece
253 8-10 V4A
5312582
Smallest selling unit: 25 piece
25piece
piece
252 8-10xFL30V4A
5312656
Smallest selling unit: 10 piece
10piece
piece
250 V4A
5312925
Smallest selling unit: 10 piece
10piece
piece
Item no. 5312318
Cross-connector with intermediate plate for Rd 8−10 mm A4Type
252 8-10 V4A
Smallest selling unit: 10 piece
10piece
piece
Item no. 5312346
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4Type
252 8-10x16 V4A
Smallest selling unit: 10 piece
10piece
piece
Item no. 5312582
Cross-connector round/round without intermediate plate A4Type
253 8-10 V4A
Smallest selling unit: 25 piece
25piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Diameter
Normal halka (kg)
Kesit
Normal halka (m)
Material
Item no.
RD 10-V2A
10
32
78
50
Stainless steel 1.4301
5021227
RD 8-V2A
8
50
50
125
Stainless steel 1.4301
5021235
RD 10-V2A
10
50
78
80
Stainless steel 1.4301
5021239
RD 10-V4A 20
10
12
78
20
Stainless steel 1.4571/1.4404
5021640
RD 10-V4A
10
32
78
50
Stainless steel 1.4571/1.4404
5021642
RD 8-V4A
8
50
50
125
Stainless steel 1.4571/1.4404
5021644
RD 10-V4A
10
50
78
80
Stainless steel 1.4571/1.4404
5021647
Diameter
Normal halka
(kg)
Kesit
Normal halka
(m)
Material
RD 10-V2A
Item no.
5021227
Diameter
10
Normal halka (kg)
32
Kesit
78
Normal halka (m)
50
Material
Stainless steel 1.4301
RD 8-V2A
Item no.
5021235
Diameter
8
Normal halka (kg)
50
Kesit
50
Normal halka (m)
125
Material
Stainless steel 1.4301
RD 10-V2A
Item no.
5021239
Diameter
10
Normal halka (kg)
50
Kesit
78
Normal halka (m)
80
Material
Stainless steel 1.4301
RD 10-V4A 20
Item no.
5021640
Diameter
10
Normal halka (kg)
12
Kesit
78
Normal halka (m)
20
Material
Stainless steel 1.4571/1.4404
RD 10-V4A
Item no.
5021642
Diameter
10
Normal halka (kg)
32
Kesit
78
Normal halka (m)
50
Material
Stainless steel 1.4571/1.4404
RD 8-V4A
Item no.
5021644
Diameter
8
Normal halka (kg)
50
Kesit
50
Normal halka (m)
125
Material
Stainless steel 1.4571/1.4404
RD 10-V4A
Item no.
5021647
Diameter
10
Normal halka (kg)
50
Kesit
78
Normal halka (m)
80
Material
Stainless steel 1.4571/1.4404
