Rung CKD 40

Rung CKD 40

Type CKD 40 60 FT
|
Item no. 6008269
|
EAN 4012195612766
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

Description

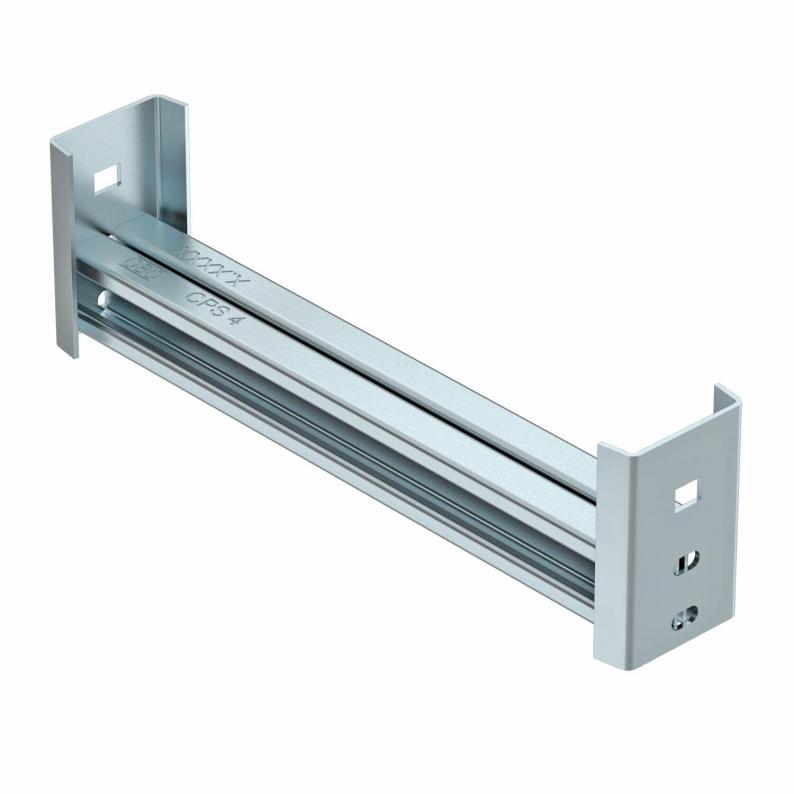

CKD40 rung for use in heavy-duty vertical ladders and in IS 8 supports.

The maximum rung load is 175 kg.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • I profil destek
  • CO₂ footprint (PCF)

Technical data

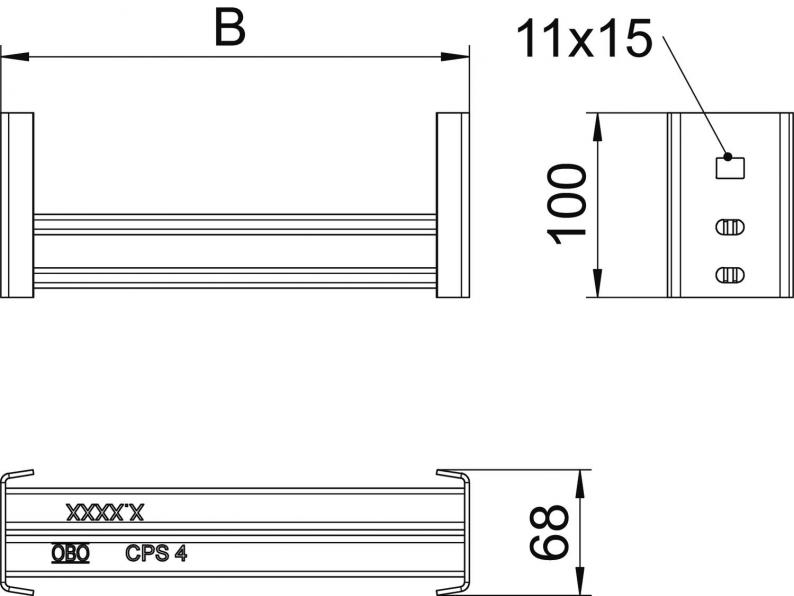

Dimensions

Length554 mm
Width554 mm
Height100 mm

Technical data

Ölçü G x Y2 x 40 x 22,5 mm
Yarık uzunluğu18 mm
Material thickness2 mm
BoyutB554mm
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya4,5105 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
CKD 40 60 FT
Item no.
6008269
Width
554
CKD 40 70 FT
Item no.
6008277
Width
654
CKD 40 80 FT
Item no.
6008285
Width
754
CKD 40 90 FT
Item no.
6008293
Width
854
