Rung seat for steel supports FT
Type SAA MS4022 FT
|Item no. 6007498
|EAN 4012195439479
Item no. / Type
6007498 / SAA MS4022 FT
Smallest selling unit: 5 Pair
5Pair
Pair
Description

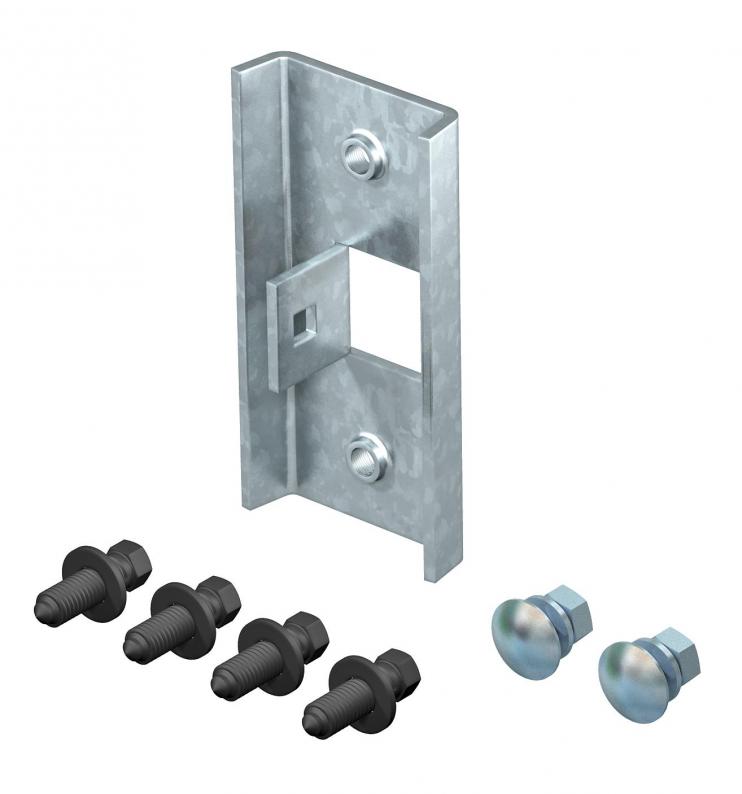

Rung seat for fastening rungs of type MS4022 to steel girders.
The set consists of two rung seats, two hexagonal bolts M8 x 16 mm and four hexagonal bolts with an M10 x 30 application tip.
Technical data
Dimensions
| Height | 130 mm |
|---|
Technical data
| Açı aralığı min. | 0 mm |
|---|---|
| Suitable for ceiling fastening | no |
| Suitable for panel fastening | no |
| Suitable for profile shapes | C profile |
| Version for | Screw head plate |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 2,023 kg CO2e / 2 Piece |
|---|
