Screw connector A2
Type MKR SV A2
|Item no. 6066244
|EAN 4012196517329
Item no. / Type
6066244 / MKR SV A2
Width
23 mm
Height
8,5 mm
Colour
stainless steel
Smallest selling unit: 25 piece
25piece
piece
Description

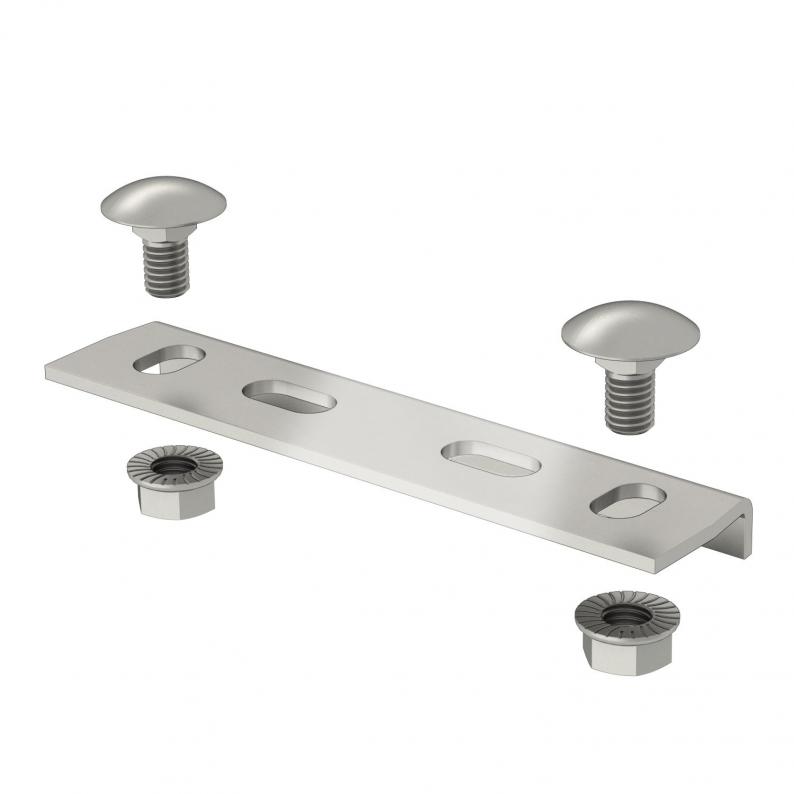

Straight connector for straight connection of cable trays, according to the marine standard, and fittings with a side height of 15 mm.
Technical data

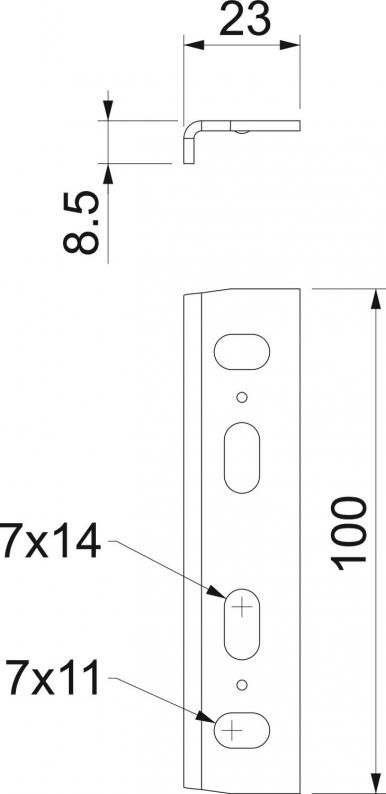

Dimensions
| Length | 100 mm |
|---|---|
| Width | 23 mm |
| Height | 8,5 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Paslanmaz çelik, mordanlı | no |
| Kafes kablo kanalı için uygun | no |
| Kablo merdiveni için uygun | no |
| Kablo kanalı için uygun | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Suitable for cable tray system height | 15 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Boyut | 16x29x60 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,4259 kg CO2e / 1 Piece |
|---|
