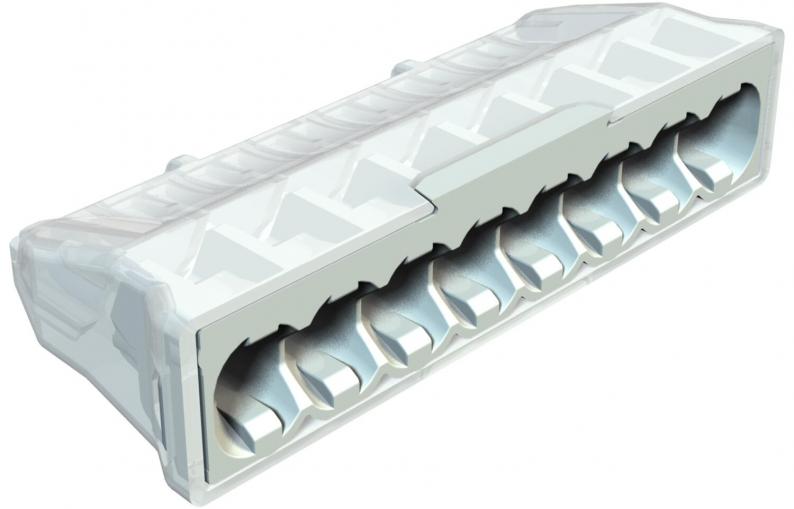

Screwless terminal, 8-pole

Type 61 825 LGR

Item no. 2054523

EAN 4012195477976

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

2054523 / 61 825 LGR

Anma gerilimi

450 V

Anma kesiti min.

0,5 mm²

Anma kesiti maks.

2,5 mm²

Bağlantı yeri sayısı

Colour

Light grey; RAL 7035

Smallest selling unit: 50 piece

piece

Description

Screwless terminal to connect single-strand cables.
Nominal cross-section:
8 x 0.5 mm² to 2.5 mm² single-wire conductor

8 x 1.5 mm² to 2.5 mm² rigid, multi-wire conductor
Rated voltage 450 V.
Rated current 24 A.
Stripping length: 8–9 mm.
Inspection opening: phase tester and testing pin (max. Ø 2 mm).

Technical data

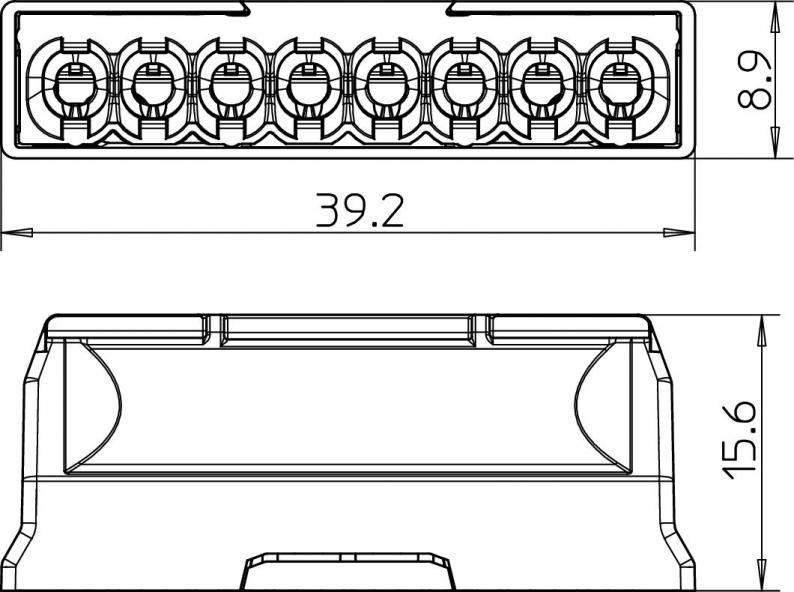

Dimensions

Length	39,2 mm
Width	15,6 mm
Height	8,9 mm

Technical data

Kutup sayısı	8
Nominal current	24 A
Anma gerilimi	450 V
Suitable for solid conductors	hayır
Suitable for flexible conductors	hayır
Suitable for multi-wire conductors	evet
With actuating levers	hayır
Connectable conductor cross-section, single-wire, min.	0,5 mm²
Connectable conductor cross-section, single-wire, max.	2,5 mm²
Connectable conductor cross-section, multi-wire, min.	1,5 mm²
Connectable conductor cross-section, multi-wire, max.	2,5 mm²
Anma kesiti min.	0,5 mm²
Anma kesiti maks.	2,5 mm²
Kesit	8 x 0.5 mm² to 2.5 mm² single-wire conductor 8 x 1.5 mm² to 2.5 mm² rigid, multi-wire conductor mm²
Bağlantı yeri sayısı	8
Kullanılabilir sıcaklık aralığı min.	-5 °C
Kullanılabilir sıcaklık aralığı maks.	90 °C
Aleve dayanıklı	Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C
Boyut	8x2,5mm²
Material	Polyamide
Colour	Light grey; RAL 7035
