Separable cable gland M20, multiple sealing insert, light grey

Separable cable gland M20, multiple sealing insert, light grey

Type V-TEC TB20 2x4
|
Item no. 2024950
|
EAN 4012196536795
Show all variants
Item no. / Type
Number of drill holes

Smallest selling unit: 5 piece

piece

Description

The splittable cable gland V-TEC TB.. ensures - like all V-TEC glands - a secure sealing of the cable. The installation of pre-terminated cables or function cables, for example, is easy and quick, thanks to the splitting of the cable gland.

The V-TEC TB is also unbeatable when refitting an existing installation and as a "repair gland". There is no need to disassemble pre-mounted cables, it can be installed without interrupting the production process.


The gland set consists of an intermediate support, a cap nut and the seal. Of course, the split locknut is also in the scope of delivery.
Further multiple sealing inserts upon request.

The sealing inserts are used to insert multiple cables through a gland. Depending on the application, the specified hole diameters are reduced by 1–2 mm when tightening the cable gland.

The ideal aids are the spreading pliers which can be used to open the sealing insert. With this tool, inserting the individual cables is quick and easy.

  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • UV-resistant
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • RoHS-conformant
  • UKCA declaration of conformity
  • Protection rating IP 67
  • Thread metric
  • M20 entry
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

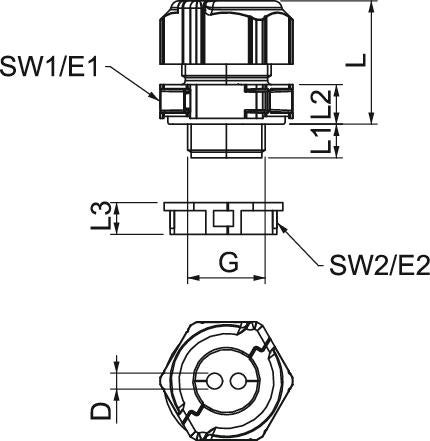

Dimensions

Length30 mm
Width29 mm
Height40 mm
Dimension L30 mm
Dimension GM20x1,5 mm
Dimension L min.24,5 mm
Dimension L max.30,5 mm
Dimension L110 mm
Dimension L28,5 mm
Dimension L38 mm
Dimension D4 mm

Technical data

Impact-resistantyes
Halogen-freeyes
Fibre-glass reinforcedno
explosion-proofno
Strain relief optionyes
Protection ratingIP67
ThreadM20 x 1,5
Number of drill holes2
For Ex zoneWithout
Thread typeMetric
Bend protectionno
With locknutyes
Sealing insert, multipleyes
Flat cable glandno
Type of sealSealing ring
Splittable glandyes
For Ex zone gasWithout
For Ex zone dustWithout
Thread increase1,5 mm
Nominal thread size20
Hexagonal corner dimension30 mm
Dimension E1 (mm)33,5 mm
Dimension E230 mm
Version forStraight
Thread length10 mm
WAF 130 mm
WAF 227 mm
Unstable torque2 Nm
Permitted temperature range, min.-20 °C
Permitted temperature range, max.80 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
DimensionM20
MaterialPolycarbonate
ColourLight grey

Environmental Data

0,1218 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,1218 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,1218 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Instructions and Aid (1)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Number of drill holes
V-TEC TB20 2x4
Item no.
2024950
Thread
M20 x 1,5
Number of drill holes
2
Sealing insert, multiple
yes
Colour
Light grey
V-TEC TB20 2x5
Item no.
2024952
Thread
M20 x 1,5
Number of drill holes
2
Sealing insert, multiple
yes
Colour
Light grey
V-TEC TB20 2x6
Item no.
2024954
Thread
M20 x 1,5
Number of drill holes
2
Sealing insert, multiple
yes
Colour
Light grey
V-TEC TB20 4x4
Item no.
2024956
Thread
M20 x 1,5
Number of drill holes
4
Sealing insert, multiple
yes
Colour
Light grey
V-TEC TB20 6x4
Item no.
2024958
Thread
M20 x 1,5
Number of drill holes
6
Sealing insert, multiple
yes
Colour
Light grey
