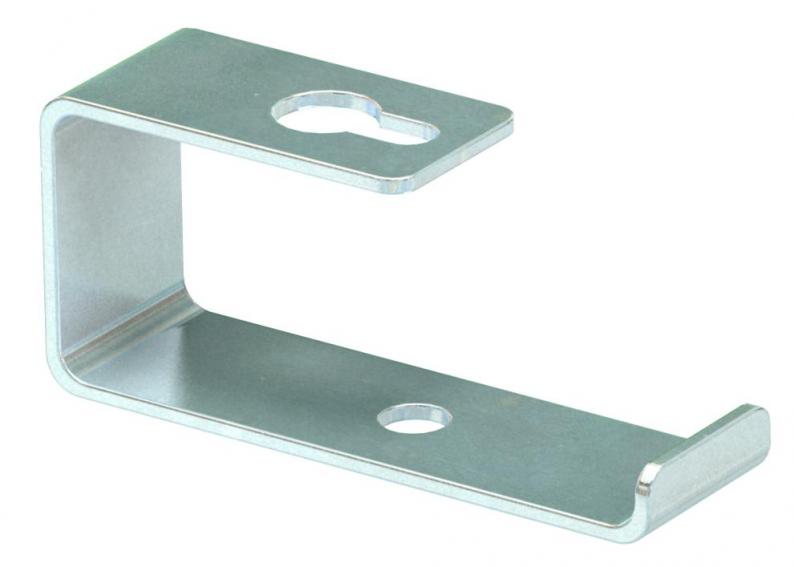

Separating clamp for ceiling mounting

Separating clamp for ceiling mounting

Type BSKD-B0511
|
Item no. 7215356
|
EAN 4012196896356
Show all variants
Item no. / Type
Dimension A
Dimension B
Dimension H
Dimension b
Dimension h

Smallest selling unit: 25 piece

piece

Description

Separating clamp as installation aid when mounting the PYROLINE® Con D BSK, type BSK 090511 and type BSK 120511, fire protection duct on the ceiling. Mounting of the clamp directly on the fastening anchors of the fire protection duct.


  • Fire protection duct for ceiling mounting
  • Fire resistance class I90
  • Function maintenance class E30
  • Fire resistance class I120
  • Function maintenance class E90
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Dimension A27,5 mm
Dimension B55 mm
Dimension H46 mm
Dimension b37,5 mm
Dimension h18 mm

Technical data

Duct height, internal50 mm
Duct width, internal110 mm
Fastening typeScrew-on
SurfaceStrip galvanised
MaterialSteel
Colourzinc

Environmental Data

0,1901 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,1901 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Dimension A
Dimension B
Dimension b
BSKD-B0511
Item no.
7215356
Dimension A
27,5
Dimension B
55
Dimension H
46
Dimension b
37,5
Dimension h
18
BSKD-B0521
Item no.
7215362
Dimension A
52,5
Dimension B
105
Dimension H
46
Dimension b
62,5
Dimension h
18
