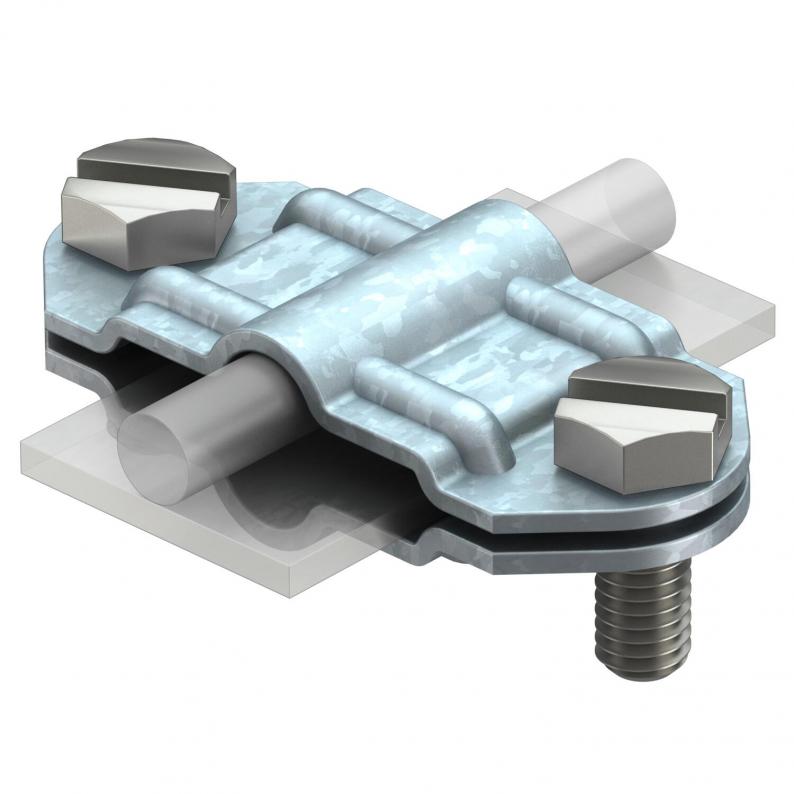

Separating piece for Rd 8−10 and FL 30 mm FT
Type 233 8
|Item no. 5336309
|EAN 4012195424635
Item no. / Type
5336309 / 233 8
Fit
Rd 8-10/FL30 x Rd 8-10/FL30 mm
Smallest selling unit: 20 piece
20piece
piece
Description
• To fit round conductors Rd 8-10 or flat conductors FL 30
• With 2 hexagonal bolts M8 x 20 made of rustproof steel (VA)
• Short-circuit current Ik (50 Hz), time 0.6 s, temp. max. 300 °C: 8.5 kA
• With 2 hexagonal bolts M8 x 20 made of rustproof steel (VA)
• Short-circuit current Ik (50 Hz), time 0.6 s, temp. max. 300 °C: 8.5 kA
Technical data
Technical data
| Intermediate plate | no |
|---|---|
| Bimetal connector | no |
| Suitable for connection | Miscellaneous |
| Fit | Rd 8-10/FL30 x Rd 8-10/FL30 mm |
| Dimension | 8-10mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
Environmental Data
0,2913 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2913 kg CO2e / 1 Piece |
|---|
