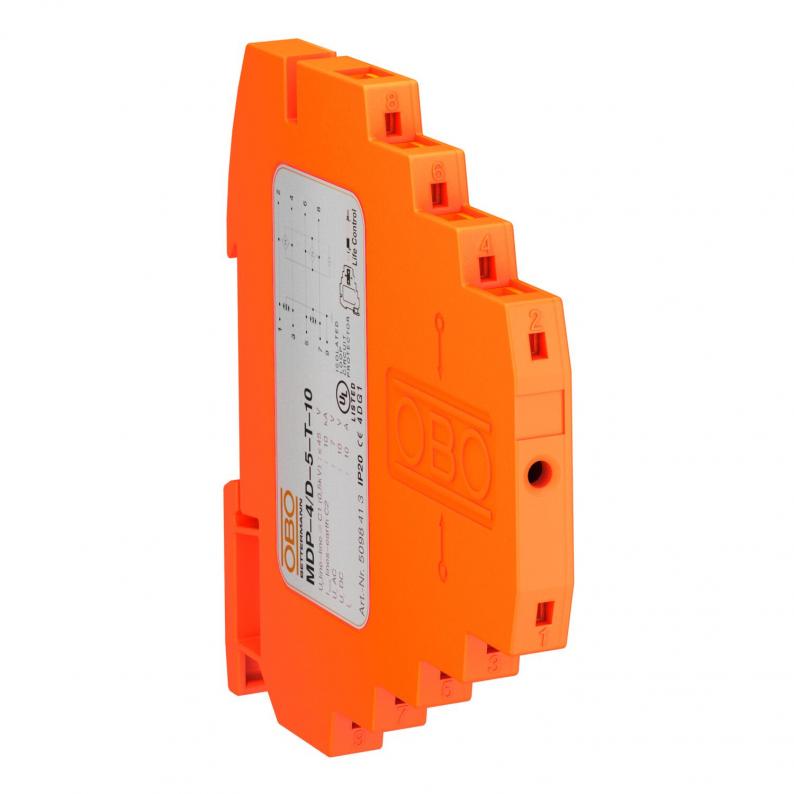

Series protection device, 4-pole, 5 V version
Type MDP-4 D-5-T-10
|Item no. 5098413
|EAN 4012195625124
Item no. / Type
5098413 / MDP-4 D-5-T-10
Kutup sayısı
4
Plug-in system
Terminal
Maximum continuous voltage AC
7 V
Maximum continuous voltage DC
10 V
Smallest selling unit: 1 piece
1piece
piece
Description
Lightning barrier with test function; 5 V version
• Rated load current 10 A
• Protection device for multi-wire systems
• Direct shield earthing and screwless connection terminals
• Space-saving width of just 8.7 mm
• Protection circuit testable with Life Control
• High bandwidth to 100 MHz
• UL-listed (4DG1)
Application: Universal use on 35 mm DIN rail in any standard distribution housing.
• Rated load current 10 A
• Protection device for multi-wire systems
• Direct shield earthing and screwless connection terminals
• Space-saving width of just 8.7 mm
• Protection circuit testable with Life Control
• High bandwidth to 100 MHz
• UL-listed (4DG1)
Application: Universal use on 35 mm DIN rail in any standard distribution housing.
Technical data
Technical data
| Kutup sayısı | 4 |
|---|---|
| Cihazda sinyalizasyon | Readable |
| Plug-in system | Terminal |
| Koruma seviyesi damar/damar | <45 V |
| Koruma seviyesi damar/toprak | <800 V |
| Koruma sınıfı | IP20 |
| Test standardı | IEC 61643-21 |
| Anma gerilimi | 5 V |
| Capacity (wire-wire) | < 40 pF |
| Earthing via: | DIN rail |
| Insulation resistance | >10 MΩ |
| Shielding connection available | yes |
| Screening | Direct |
| Impulse durability wire-wire | C1: 0,5 kV / 0,25 kA (8/20µs) |
| Total discharge current (10/350) | D1: 2 kA |
| Total discharge current (8/20) | 10 kA |
| Nominal load current DC | 10 A |
| Nominal load current AC | 0,7 A |
| Maximum continuous voltage AC | 7 V |
| Maximum continuous voltage DC | 10 V |
| Approvals | UL |
| Cut-off frequency | 100 MHz |
| SPD to IEC 61643-21 | Class I+II+III / D1+C2+C1 |
| Kategorie | Type 1+2+3 / D1+C2+C1 |
| Lightning protection zone LPZ | 0→3 |
| İmpuls akımı | 2 kA |
| Ekleme kaybı (Insertion loss) | ≤3 dB |
| Bağlantı kesiti, sabit maks. | 2,5 mm² |
| Bağlantı kesiti, çok telli min. | 0,14 mm² |
| Bağlantı kesiti, çok telli maks. | 1,5 mm² |
| Kullanılabilir sıcaklık aralığı min. | -40 °C |
| Kullanılabilir sıcaklık aralığı maks. | 80 °C |
| Boyut | 5V |
Connectivity options
| Bağlantı kesiti, sabit min. | 0,14 mm² |
|---|---|
| Bağlantı kesiti, esnek min. | 0,14 mm² |
| Bağlantı kesiti, esnek maks. | 2,5 mm² |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,2969 kg CO2e / 1 Piece |
|---|
