Service pole, type ISSRHSM45
Type ISSRHSM45RW
|Item no. 6290090
|EAN 4012195428138
Item no. / Type
Length
Colour
Smallest selling unit: 1 piece
1piece
piece
Description

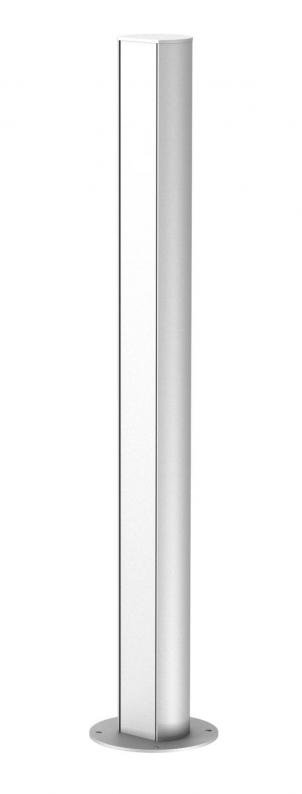

ISS aluminium service pole with a 45 mm system opening.
Set consisting of:
1 one-compartment pole with stand
Total length: 675 mm
1 aluminium cover
Length: 675 mm
The design of this ISS service pole is based on an extremely slender, round aluminium profile, which has a smooth cover of the Rapid 45 device installation trunking series on the front side. The 45 mm system opening is suitable for direct acceptance of Modul 45® switching and connection devices. The installation compartment is theoretically sufficient for 14 Modul 45® devices. If Modul 45connect® is used or in the case of cabling requiring a lot of space, the number of the max. installable devices is reduced. There is the option of installing a partition, type 2371/40 (6023096).
Set consisting of:
1 one-compartment pole with stand
Total length: 675 mm
1 aluminium cover
Length: 675 mm
The design of this ISS service pole is based on an extremely slender, round aluminium profile, which has a smooth cover of the Rapid 45 device installation trunking series on the front side. The 45 mm system opening is suitable for direct acceptance of Modul 45® switching and connection devices. The installation compartment is theoretically sufficient for 14 Modul 45® devices. If Modul 45connect® is used or in the case of cabling requiring a lot of space, the number of the max. installable devices is reduced. There is the option of installing a partition, type 2371/40 (6023096).
Technical data

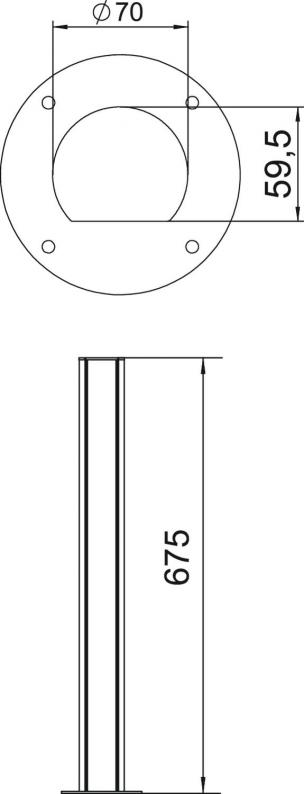

Dimensions
| Length | 675 mm |
|---|---|
| Width | 70 mm |
| Height | 59,5 mm |
| Kolon yüksekliği min. | 675 mm |
Technical data
| Yol sayısı | 1 St. |
|---|---|
| Halojen İçermez | yes |
| Kolon biçimi | Round |
| Ayarlanabilir | no |
| Takılabilir kapak sayısı | 1 |
| Portatif | no |
| Tavana montaj | no |
| Zemine montaj | yes |
| Kablo girişi | Bottom |
| Pre-wired | no |
| Continuous profile | yes |
| Version for | Single-sided |
| Fastening type | Stand |
| Kanal genişliği | 45 mm |
| Boyut | 675x70x60 |
| Material | Aluminium |
| Colour | Pure white; RAL 9010 |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 15,009 kg CO2e / 1 Piece |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6288704
Protective conductor connection bracketType
8AWR
Smallest selling unit: 10 piece
10piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Length
Colour
Item no.
ISSRHSM45RW
675
Pure white; RAL 9010
6290090
ISSRHSM45EL
675
alüminyum
6290091
Colour
ISSRHSM45RW
Item no.
6290090
Length
675
Colour
Pure white; RAL 9010
ISSRHSM45EL
Item no.
6290091
Length
675
Colour
alüminyum
