Service pole, type ISSRM45
Type ISSRM45RW
|Item no. 6290086
|EAN 4012195428091
Item no. / Type
Length
Colour
Smallest selling unit: 1 piece
1piece
piece
Description

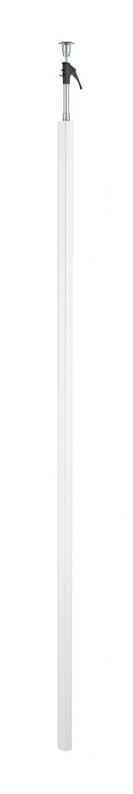

ISS aluminium service pole with a 45 mm system opening.
Set consists of:
1 one-compartment pole with clamping fastening
Total length: 3,315 mm–3,480 mm
1 ceiling attachment with clamping device
1 aluminium cover
Length: 3,000 mm
The design of this ISS service pole is based on an extremely slender, round aluminium profile, which has a smooth cover of the Rapid 45 device installation trunking series as its front side. The 45 mm system opening is suitable for direct acceptance of Modul 45® switching and connection devices.
Set consists of:
1 one-compartment pole with clamping fastening
Total length: 3,315 mm–3,480 mm
1 ceiling attachment with clamping device
1 aluminium cover
Length: 3,000 mm
The design of this ISS service pole is based on an extremely slender, round aluminium profile, which has a smooth cover of the Rapid 45 device installation trunking series as its front side. The 45 mm system opening is suitable for direct acceptance of Modul 45® switching and connection devices.
Technical data

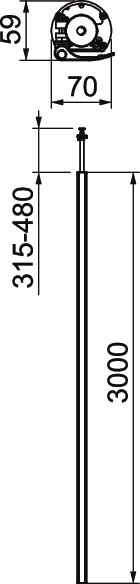

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 70 mm |
| Height | 59 mm |
| Kolon yüksekliği min. | 3315 mm |
| Kolon yüksekliği maks. | 3480 mm |
Technical data
| Yol sayısı | 1 St. |
|---|---|
| Halojen İçermez | yes |
| Kolon biçimi | Round |
| Ayarlanabilir | yes |
| Yükseklik dengelemesi min. | 315 mm |
| Yükseklik dengelemesi maks. | 480 mm |
| Takılabilir kapak sayısı | 1 |
| Portatif | no |
| Tavana montaj | yes |
| Zemine montaj | yes |
| Kablo girişi | Top |
| Pre-wired | no |
| Continuous profile | yes |
| Version for | Single-sided |
| Fastening type | Tension |
| Kanal genişliği | 45 mm |
| Boyut | 3000x70x59 |
| Material | Aluminium |
| Colour | Pure white; RAL 9010 |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 61,1226 kg CO2e / 1 Piece |
|---|
Accessories
Mounting accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6023096
Partition for WDK trunking, trunking height 40 mmType
2371 40
Smallest selling unit: 2 m
2m
m
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Length
Fastening type
Material
Colour
Surface
Item no.
ISSRM45RW
3000
Tension
Aluminium
Pure white; RAL 9010
6290086
ISSRM45EL
3000
Tension
Aluminium
alüminyum
Anodised
6290087
Colour
ISSRM45RW
Item no.
6290086
Length
3000
Fastening type
Tension
Material
Aluminium
Colour
Pure white; RAL 9010
ISSRM45EL
Item no.
6290087
Length
3000
Fastening type
Tension
Surface
Anodised
Material
Aluminium
Colour
alüminyum
