Sheet steel flat angle cover

Sheet steel flat angle cover

Type GS-OTFRW
|
Item no. 6279860
|
EAN 4012195695936
Show all variants
Item no. / Type
6279860 / GS-OTFRW
Width
76,5 mm

Smallest selling unit: 1 piece

piece

Description

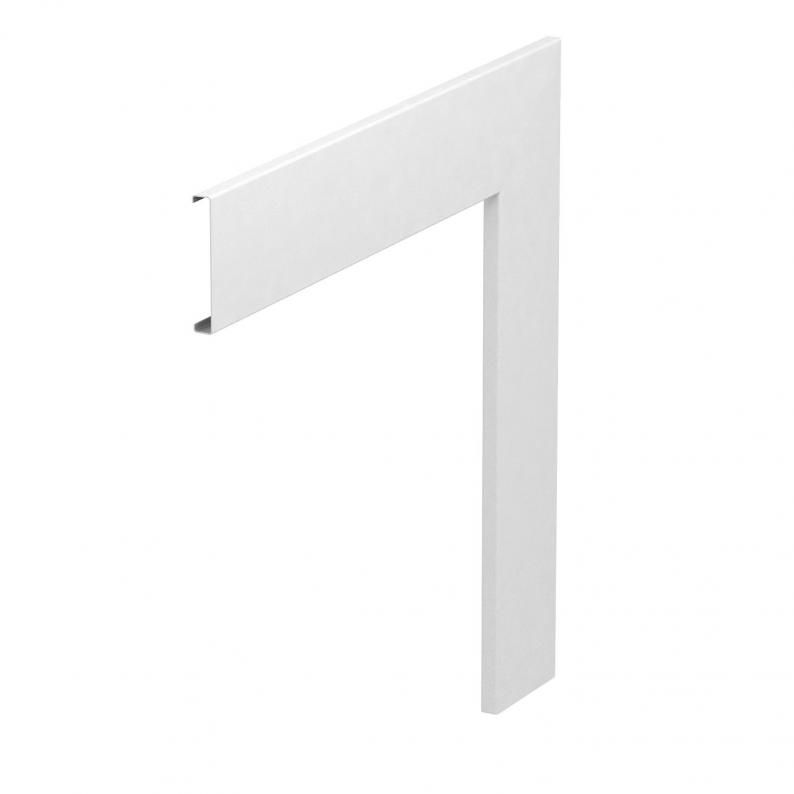

Cover for closing the flat angle of the Rapid 80 GS device installation trunking.
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

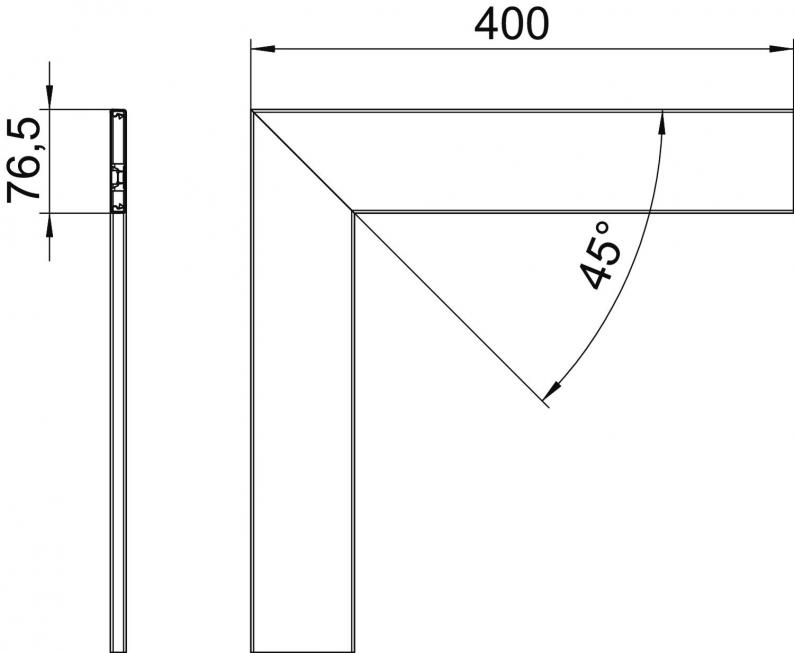

Dimensions

Length400 mm
Width76,5 mm
Height12 mm

Technical data

Halojen İçermezyes
Koruyucu folyoyes
Koruma sınıfıIP30
Üst parçaların montaj şekliInternal
Protection rating IK codeIK10
Version forSmooth
Kullanılabilir sıcaklık aralığı min.-25 °C
Kullanılabilir sıcaklık aralığı maks.60 °C
Boyut12x76,5x400
MaterialSteel
ColourPure white; RAL 9010

Environmental Data

Packaging made completely from recycled cardboard.yes
CO2 ayak izi (GWP) beşikten kapıya1,7173 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Certificates (2)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

GS-OTFRW
Item no.
6279860
Width
76,5
