Slide nut ZL
Type MS40SN M10 ZL
|Item no. 1147114
|EAN 4012196489411
Item no. / Type
Length
Width
Height
Vida dişi
Smallest selling unit: 50 piece
50piece
piece
Description
Slide nut for use with MS4022 profile rail.
Technical data

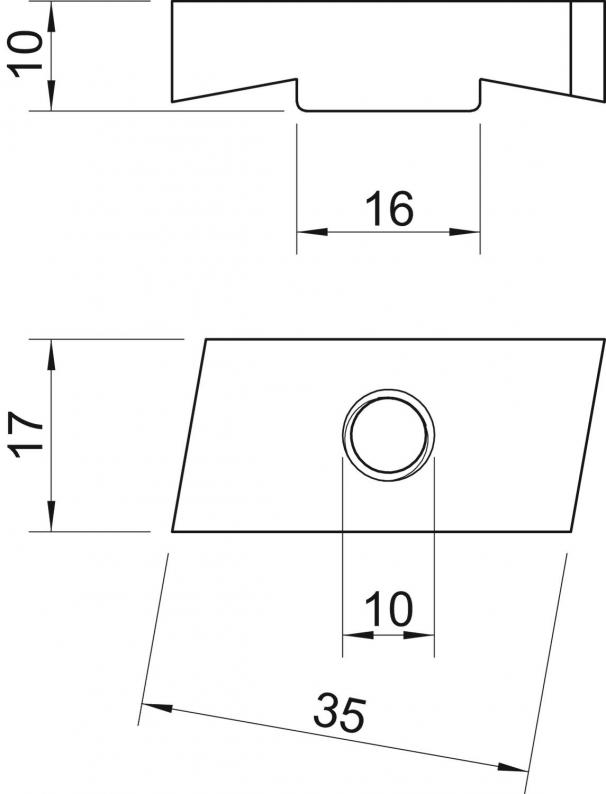

Dimensions
| Length | 35 mm |
|---|---|
| Width | 17 mm |
| Height | 10 mm |
| Dimension L | 30 mm |
| Dimension B | 17 mm |
| Dimension H | 10 mm |
Technical data
| Thread metric | 10 |
|---|---|
| Vida dişi | M10 |
| With spring | hayır |
| Boyut | M10 |
| Surface | Zinc slat |
| Material | Steel |
Environmental Data
| Packaging without plastic | evet |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,0864 kg CO2e / 1 Adet |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Width
Height
Vida dişi
Item no.
MS40SN M6 ZL
35
17
10
M6
1147106
MS40SN M8 ZL
35
17
10
M8
1147110
MS40SN M10 ZL
35
17
10
M10
1147114
MS40SN M12 ZL
35
17
11,5
M12
1147118
Height
Vida dişi
MS40SN M6 ZL
Item no.
1147106
Length
35
Width
17
Height
10
Vida dişi
M6
MS40SN M8 ZL
Item no.
1147110
Length
35
Width
17
Height
10
Vida dişi
M8
MS40SN M10 ZL
Item no.
1147114
Length
35
Width
17
Height
10
Vida dişi
M10
MS40SN M12 ZL
Item no.
1147118
Length
35
Width
17
Height
11,5
Vida dişi
M12
