Slide nut ZL
Type MS40SN M6 ZL
|Item no. 1147106
|EAN 4012196489398
Item no. / Type
1147106 / MS40SN M6 ZL
Length
35 mm
Width
17 mm
Height
10 mm
Thread
M6
Smallest selling unit: 50 piece
50piece
piece
Description
Slide nut for use with MS4022 profile rail.
Technical data

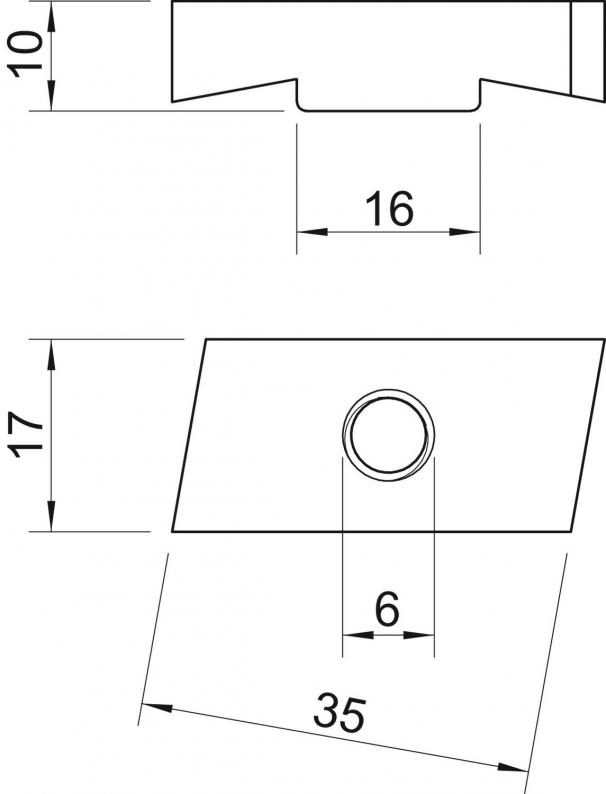

Dimensions
| Length | 35 mm |
|---|---|
| Width | 17 mm |
| Height | 10 mm |
| Dimension L | 30 mm |
| Dimension B | 17 mm |
| Dimension H | 10 mm |
Technical data
| Thread metric | 6 |
|---|---|
| Thread | M6 |
| With spring | no |
| Dimension | M6 |
| Surface | Zinc slat |
| Material | Steel |
Environmental Data
0,087 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,087 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Width
Height
Thread
Item no.
MS40SN M6 ZL
35
17
10
M6
1147106
MS40SN M6 ZL
Item no.
1147106
Length
35
Width
17
Height
10
Thread
M6
