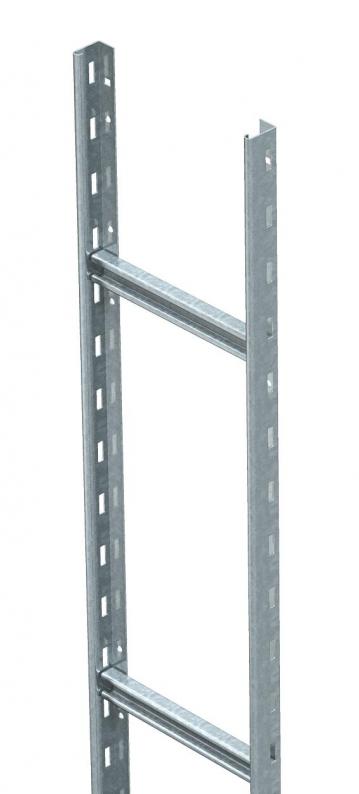

SLL 60 medium-duty vertical ladder, 6 m, FS

SLL 60 medium-duty vertical ladder, 6 m, FS

Type SLL 620 CPS 4 FS
|
Item no. 6010620
|
EAN 4012195433965
Show all variants
Item no. / Type
Width
Rail thickness

Smallest selling unit: 6 m

m

Description

Vertical ladder with a side height of 60 mm with riveted C profile rungs, open in upwards direction.

Fastening takes place directly on the wall or using the wall brackets, type WB 30/75. The slot dimension of the rung is 18 mm and the appropriate clamp clip is type 2056U.

  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 60 mm
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

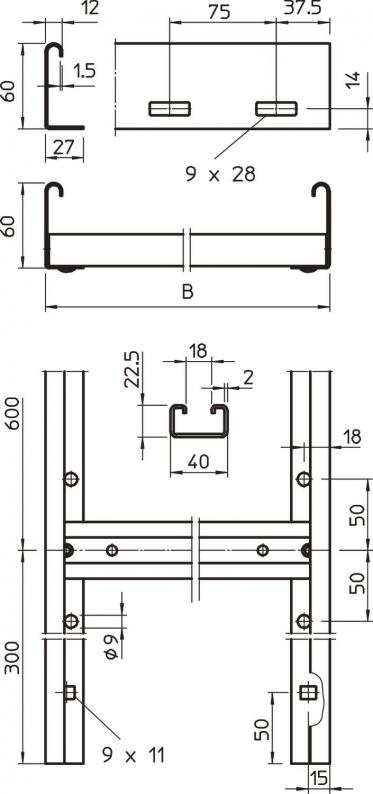

Dimensions

Length6000 mm
Width200 mm
Height60 mm
Dimension B200 mm
Rung slot dimension18,00

Technical data

Maintain electrical functionsno
Side perforationyes
Usable cross-section76 cm²
Rustproof steel, pickledno
Rung distance600 mm
Version of the rungsProfile perforated
Rail thickness1,5 mm
Dimension60x200x6000
SurfaceStrip galvanised
MaterialSteel
Colourzinc

Environmental Data

6,5997 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 Footprint (GWP) Cradle-to-Gate6,5997 kg CO2e / 1 Meter

Accessories

System accessories
Mounting accessories

Item no. 6208840

Straight connector FS
Type
LVG 60 FS

Smallest selling unit: 10 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
SLL 620 CPS 4 FS
Item no.
6010620
Width
200
Rail thickness
1,5
SLL 630 CPS 4 FS
Item no.
6010622
Width
300
Rail thickness
1,5
SLL 640 CPS 4 FS
Item no.
6010624
Width
400
Rail thickness
1,5
SLL 650 CPS 4 FS
Item no.
6010626
Width
500
Rail thickness
1,5
SLL 660 CPS 4 FS
Item no.
6010628
Width
600
Rail thickness
1,5
