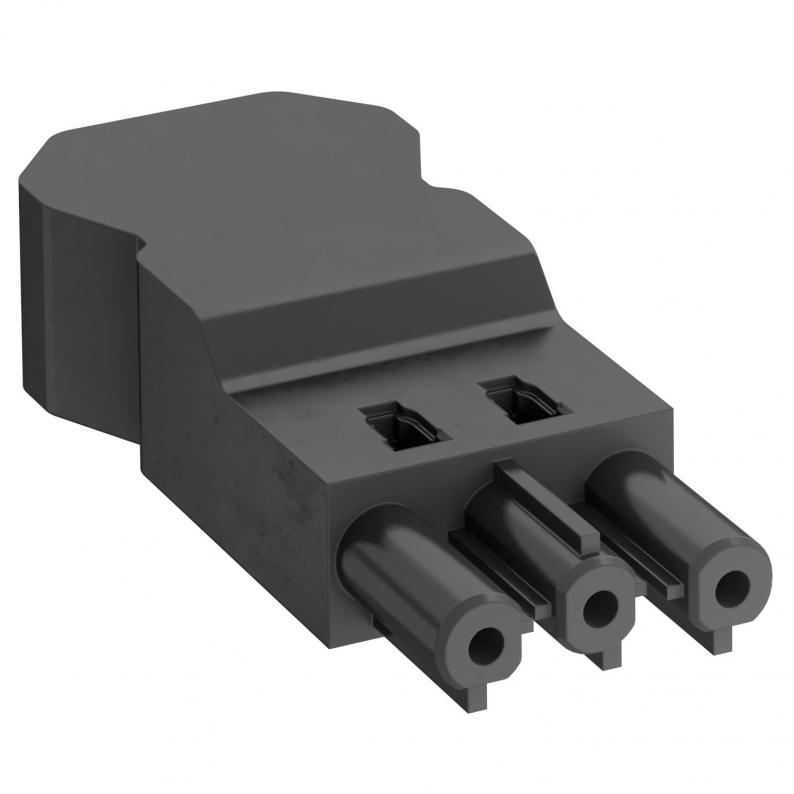

Socket section 3-pin, screw connection up to 4 mm², black

Socket section 3-pin, screw connection up to 4 mm², black

Type BT-S4 GST18i3 SW
|
Item no. 6108064
|
EAN 4012196584703
Show all variants
Item no. / Type

Smallest selling unit: 1 piece

piece

Description

Socket section, 3-pin, type GST18i with screw connection for cables of 1.5–4.0 mm² and for cable diameters between 10.5–14.5 mm (H05VV, NYM), unmounted with strain relief, terminable in situ, 250 V, 16 A.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)

Technical data

Technical data

MaterialPolyamide
ColourBlack

Environmental Data

0,0189 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,0189 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

BT-S4 GST18i3 SW
Item no.
6108064
BT-S4 GST18i3 W
Item no.
6108066
