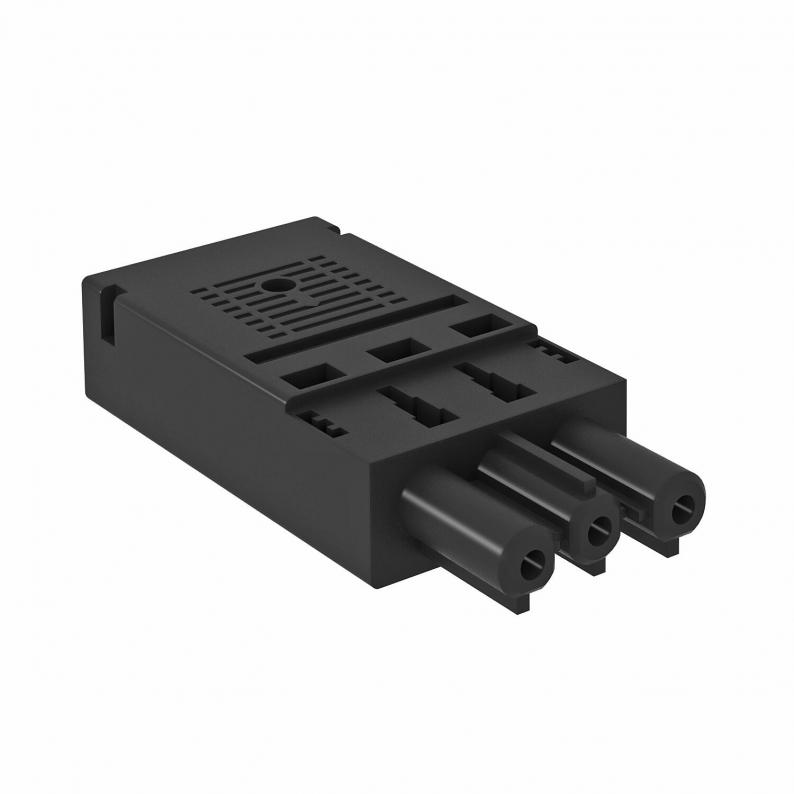

Socket section 3-pin, spring power connection, black
Type BT-F GST18i3p SW
|Item no. 6108052
|EAN 4012195273585
Item no. / Type
Smallest selling unit: 1 piece
1piece
piece
Description
Socket part, 3-pin, type GST18i with spring power connection for rigid cables of 1.5–2.5 mm², single-wire and ultrasonically welded, fine wire cables 1.5 mm² with end sleeves, unmounted with strain relief, can be terminated in situ, 250 V, 16 A.
Two connections per pole, for cables H05VV, NYM (Ø 7.8–10.33 mm), lockable, a lock should be provided for strain relief according to VDE 0628.
Stripping length: 45 mm
Stripped length: 9 mm
Two connections per pole, for cables H05VV, NYM (Ø 7.8–10.33 mm), lockable, a lock should be provided for strain relief according to VDE 0628.
Stripping length: 45 mm
Stripped length: 9 mm
Technical data
Technical data
| Colour | Black |
|---|
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,0182 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Item no.
BT-F GST18i3p SW
6108052
BT-F GST18i3p W
6108053
BT-F GST18i3p SW
Item no.
6108052
BT-F GST18i3p W
Item no.
6108053
