Socket section 5-pin, screw connection
Type BT-S GST18i5p SW
|Item no. 6108072
|EAN 4012195273714
Item no. / Type
6108072 / BT-S GST18i5p SW
Smallest selling unit: 1 piece
1piece
piece
Description

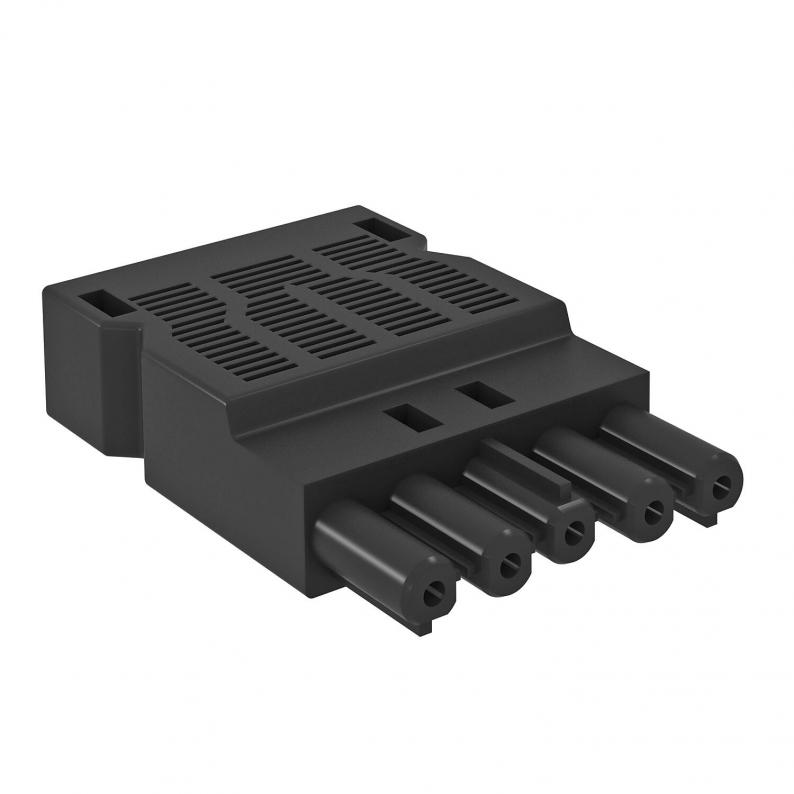

Socket part, 5-pin, type GST18i, with screw connection for 1.5 to 2.5 mm² cables, single and fine-wire, with strain relief, one connection per pin, unmounted, for cables H05VV (Ø 9.5 – 13.5) NYM and (Ø 10.5 to 13.5 mm), lockable, according to the strain relief in VDE 0628 a lock should be planned, 250 V, 16 A.
Stripping length: 8 mm
Jacket removal length: 46 mm
Stripping length: 8 mm
Jacket removal length: 46 mm
Technical data
Technical data
| Colour | Black |
|---|
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,0236 kg CO2e / 1 Piece |
|---|
