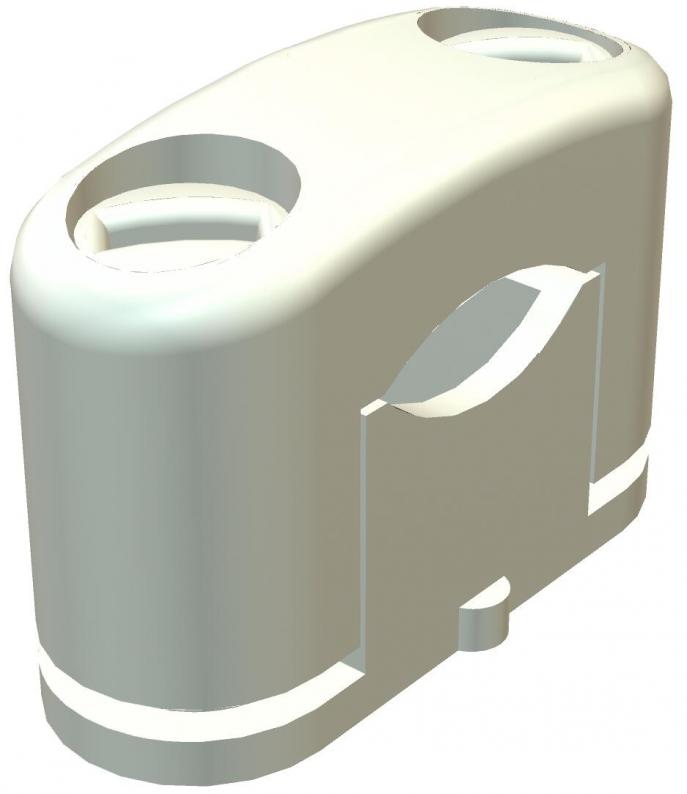

SOM clip, single, hardly flammable
Type 3083 LGR
Item no. 2124459
EAN 4012195196815
Item no. / Type
2124459 / 3083 LGR
Clamping range D, min.
32 mm
Clamping range D, max.
45 mm
Colour
Light grey; RAL 7035
Smallest selling unit: 20 piece
20piece
piece
Description
With plastic screws, so corrosion-protected, with slot for fastening with wood screws or 5 mm knock-in anchors.
Hardly flammable.
Hardly flammable.
Technical data
Dimensions
| Dimension L | 77 mm |
|---|---|
| Dimension H1 | 12 mm |
| Dimension b | 21 mm |
| Dimension H2 | 54 mm |
| Dimension H3 | 57 mm |
| Dimension d min. | 32 mm |
| Dimension b1 | 6,5 mm |
| Dimension d max. | 45 mm |
Technical data
| Halogen-free | yes |
|---|---|
| UV-resistant | no |
| Plastic-covered | no |
| Suitable in fire protection area | yes |
| Number of cables/pipes | 1 |
| Bolt | M8 x 40 |
| Version for | Closed |
| Fastening type | Screw hole |
| ROHS-conformant | yes |
| Clamping range D, min. | 32 mm |
| Clamping range D, max. | 45 mm |
| Dimension | 32-45mm |
| Material | Duroplast, Aminoplast Typ 131.5 |
| Colour | Light grey; RAL 7035 |
| Product series | Fastening clip |
Environmental Data
0,1608 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1608 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,1608 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Product images (3)
Tender specifications (1)
Variants
Type
Clamping range D, min.
Clamping range D, max.
Colour
Item no.
3083 LGR
32
45
Light grey; RAL 7035
2124459
3083 LGR
Item no.
2124459
Clamping range D, min.
32
Clamping range D, max.
45
Colour
Light grey; RAL 7035
