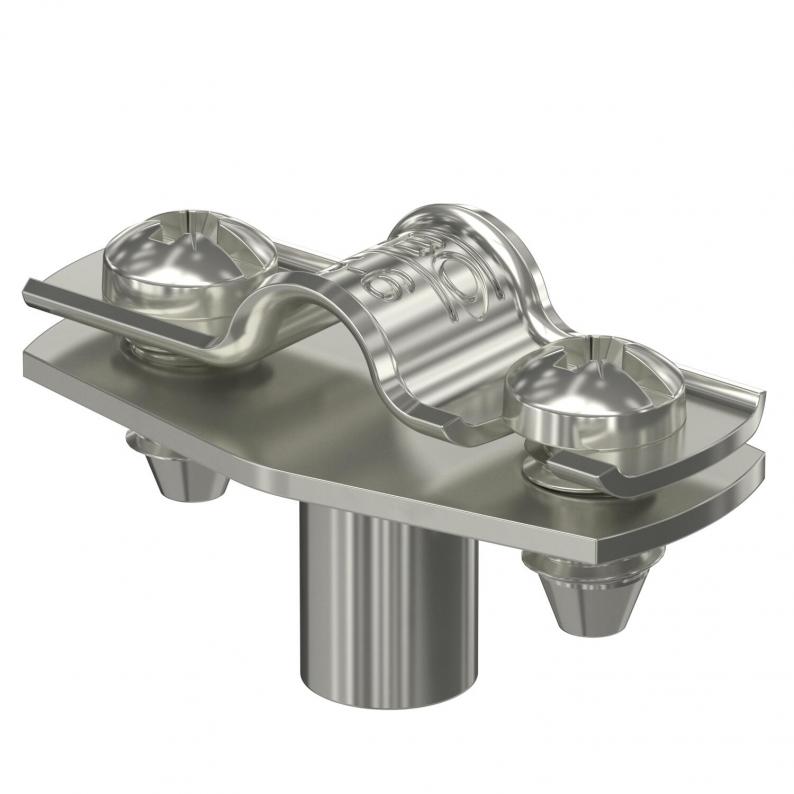

Spacer clip 732 A4

Spacer clip 732 A4

Type ASG 732 6 A4
|
Item no. 1362454
|
EAN 4012196599738
Show all variants
Item no. / Type
Material thickness
Clamping range D, min.
Clamping range D, max.

Smallest selling unit: 25 piece

piece

Description

Vidalı ayarlı kelepçe ile yapılan montajlar. Ayarlı kelepçeleri ve vidalı ayarlı kelepçeler, alaşımlı çelik V2A, elektro galvaniz veya sıcak daldırma galvanize kaplamalı çelik veya alüminyum malzemesinden üretilmektedir. Tespitleme, ankraj vidaları veya olta tipi dübeller ve Sprint vidalar ile yapılabilir.
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Fonksiyon koruma sınıfı E30
  • Function maintenance class E60
  • Fonksiyon koruma sınıfı E90
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Maintain electrical functionsevet
Material thickness1,25 mm
For diameter5 - 6
Halojen İçermezevet
UV-resistantevet
Plastic-coveredhayır
Number of cables/pipes1
Distance to the wallevet
Version forkapalı
Fastening typeThreaded connection
Clamping range D, min.5 mm
Clamping range D, max.6 mm
Boyut5-6mm
MaterialStainless steel 1.4571

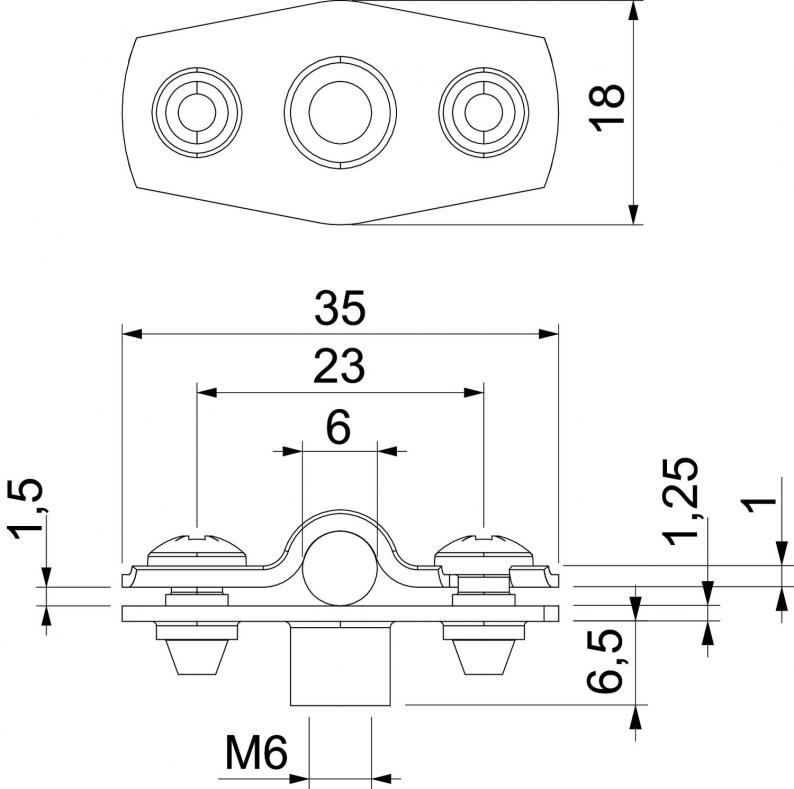

Dimensions

Dimension A35 mm
Dimension B23 mm
Dimension d max.6 mm
Dimension d min.5 mm
Dimension H112 mm
Dimension b18 mm
Dimension x1,5 mm
Ölçü t1 (mm)1
Ölçü t2 (mm)1,25
Dimension D6 mm

Environmental Data

Packaging made completely from recycled cardboard.evet
Packaging without plasticevet
CO2 ayak izi (GWP) beşikten kapıya0,1331 kg CO2e / 1 Adet

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (5)
Declarations (4)
Certificates (5)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Material thickness
Clamping range D, min.
Clamping range D, max.
ASG 732 6 A4
Item no.
1362454
Material thickness
1,25
Clamping range D, min.
5
Clamping range D, max.
6
Material
Stainless steel 1.4571
ASG 732 7 A4
Item no.
1362456
Material thickness
1,25
Clamping range D, min.
6
Clamping range D, max.
7
Material
Stainless steel 1.4571
ASG 732 8 A4
Item no.
1362458
Material thickness
1,25
Clamping range D, min.
7
Clamping range D, max.
8
Material
Stainless steel 1.4571
ASG 732 10 A4
Item no.
1362460
Material thickness
1,25
Clamping range D, min.
8
Clamping range D, max.
10
Material
Stainless steel 1.4571
ASG 732 12 A4
Item no.
1362462
Material thickness
1,25
Clamping range D, min.
10
Clamping range D, max.
12
Material
Stainless steel 1.4571
ASG 732 14 A4
Item no.
1362464
Material thickness
1,25
Clamping range D, min.
12
Clamping range D, max.
14
Material
Stainless steel 1.4571
ASG 732 17 A4
Item no.
1362467
Material thickness
1,25
Clamping range D, min.
14
Clamping range D, max.
17
Material
Stainless steel 1.4571
ASG 732 20 A4
Item no.
1362469
Material thickness
1,25
Clamping range D, min.
17
Clamping range D, max.
20
Material
Stainless steel 1.4571
ASG 732 25 A4
Item no.
1362472
Material thickness
1,25
Clamping range D, min.
20
Clamping range D, max.
25
Material
Stainless steel 1.4571
ASG 732 30 A4
Item no.
1362474
Material thickness
1,5
Clamping range D, min.
25
Clamping range D, max.
30
Material
Stainless steel 1.4571
ASG 732 36 A4
Item no.
1362478
Material thickness
1,5
Clamping range D, min.
30
Clamping range D, max.
36
Material
Stainless steel 1.4571
ASG 732 44 A4
Item no.
1362482
Material thickness
1,5
Clamping range D, min.
36
Clamping range D, max.
44
Material
Stainless steel 1.4571
ASG 732 53 A4
Item no.
1362486
Material thickness
1,5
Clamping range D, min.
44
Clamping range D, max.
53
Material
Stainless steel 1.4571
ASG 732 63 A4
Item no.
1362489
Material thickness
1,5
Clamping range D, min.
53
Clamping range D, max.
63
Material
Stainless steel 1.4571
