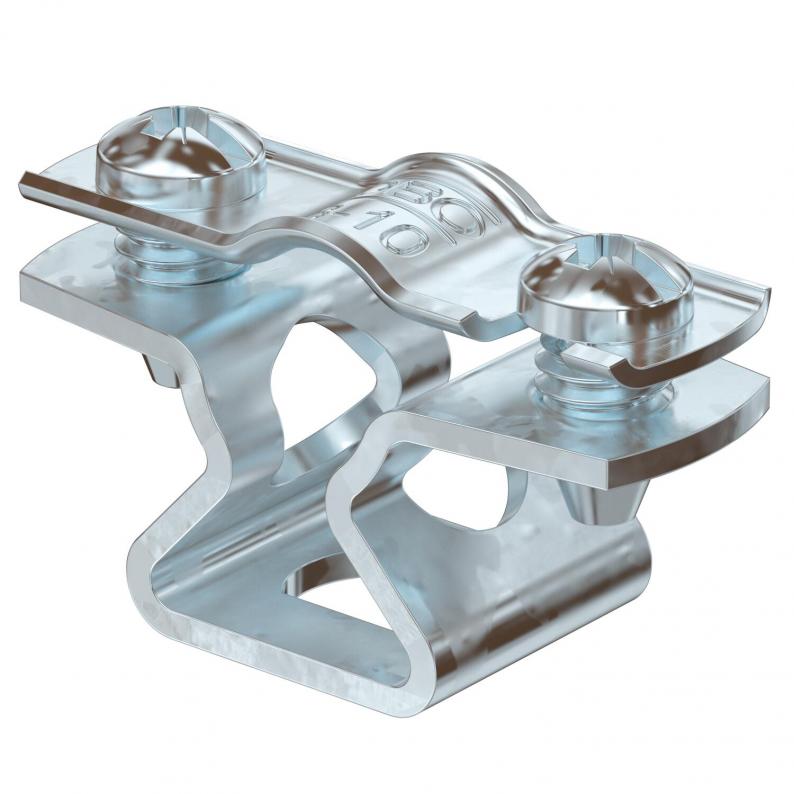

Spacer clip 733 FT
Type ASL 733 10 FT
|Item no. 1362704
|EAN 4012196599875
Item no. / Type
Material thickness
Clamping range D, min.
Clamping range D, max.
Smallest selling unit: 25 piece
25piece
piece
Description
Vidalı ayarlı kelepçe ile yapılan montajlar. Ayarlı kelepçeleri ve vidalı ayarlı kelepçeler, alaşımlı çelik V2A, elektro galvaniz veya sıcak daldırma galvanize kaplamalı çelik veya alüminyum malzemesinden üretilmektedir. Tespitleme, ankraj vidaları veya olta tipi dübeller ve Sprint vidalar ile yapılabilir.
Technical data
Technical data
| Maintain electrical functions | evet |
|---|---|
| Material thickness | 1,5 mm |
| For diameter | 8 - 10 |
| Halojen İçermez | evet |
| UV-resistant | evet |
| Plastic-covered | hayır |
| Number of cables/pipes | 1 |
| Distance to the wall | evet |
| Version for | kapalı |
| Fastening type | Vida deliği |
| Clamping range D, min. | 8 mm |
| Clamping range D, max. | 10 mm |
| Boyut | 8-10mm |
| Surface | Hot-dip galvanised |
| Material | Steel |

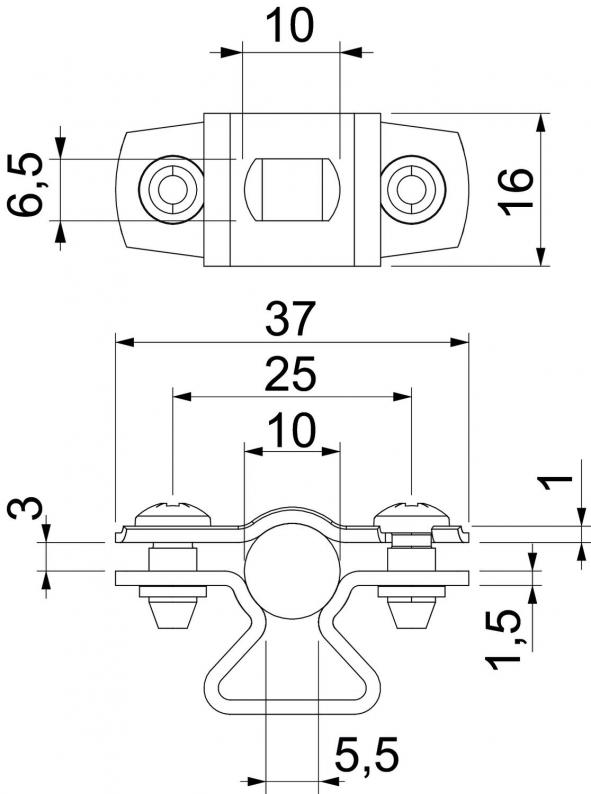

Dimensions
| Dimension L | 10 mm |
|---|---|
| Dimension A | 37 mm |
| Dimension B | 25 mm |
| Dimension d max. | 10 mm |
| Dimension d min. | 8 mm |
| Dimension b | 16 mm |
| Dimension x | 3 mm |
| Dimension s | 5,5 mm |
| Ölçü t1 (mm) | 1 |
| Ölçü t2 (mm) | 1,5 |
| Dimension D | 10 mm |
Environmental Data
| Packaging made completely from recycled cardboard. | evet |
|---|---|
| Packaging without plastic | evet |
| CO2 ayak izi (GWP) beşikten kapıya | 0,0623 kg CO2e / 1 Adet |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (5)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Material thickness
Clamping range D, min.
Clamping range D, max.
Surface
Material
Item no.
ASL 733 10 FT
1,5
8
10
Hot-dip galvanised
Steel
1362704
ASL 733 12 FT
1,5
10
12
Hot-dip galvanised
Steel
1362706
ASL 733 14 FT
1,5
12
14
Hot-dip galvanised
Steel
1362708
ASL 733 17 FT
1,5
14
17
Hot-dip galvanised
Steel
1362712
ASL 733 20 FT
1,5
17
20
Hot-dip galvanised
Steel
1362714

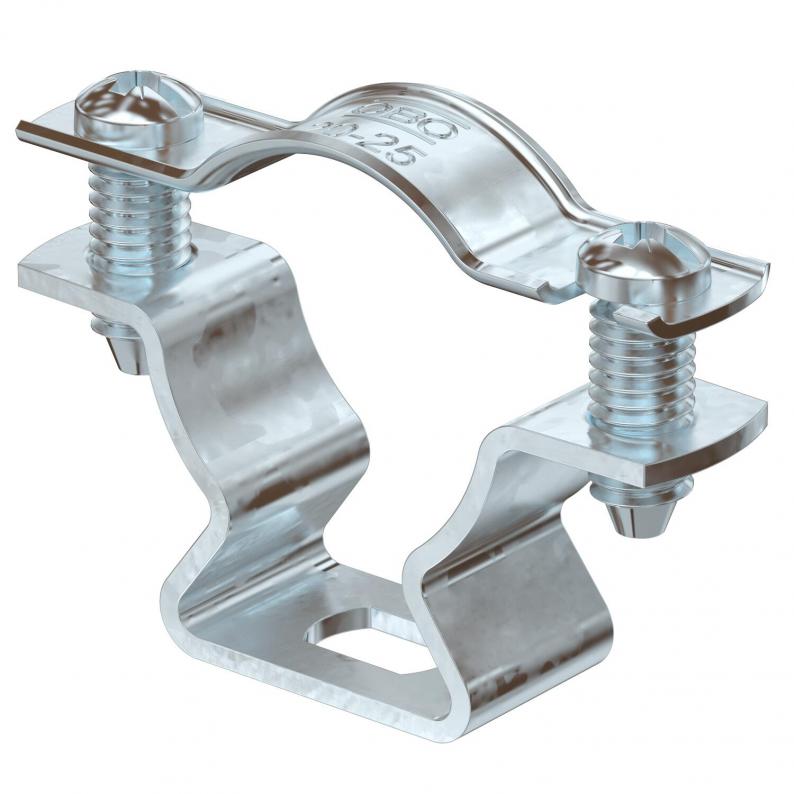

ASL 733 25 FT
1,5
20
25
Hot-dip galvanised
Steel
1362718
ASL 733 30 FT
1,5
25
30
Hot-dip galvanised
Steel
1362722
ASL 733 36 FT
1,5
30
36
Hot-dip galvanised
Steel
1362726
ASL 733 44 FT
1,5
36
44
Hot-dip galvanised
Steel
1362730
ASL 733 53 FT
1,5
44
53
Hot-dip galvanised
Steel
1362734
ASL 733 63 FT
1,5
53
63
Hot-dip galvanised
Steel
1362738
