Spacer for flat conductor, with polyamide base
Type 833 35
|Item no. 5033039
|EAN 4012195384434
Item no. / Type
5033039 / 833 35
Dimension B
60 mm
Uyumluluk
max. FL30 mm
Smallest selling unit: 25 piece
25piece
piece
Description
• Fit: FL 30
• With mounting hole 6.2 x 22 mm
• With 2 cylinder bolts M6 x 16 and over-piece from hot-dip galvanised steel
• Bottom section from polyamide, black
• With mounting hole 6.2 x 22 mm
• With 2 cylinder bolts M6 x 16 and over-piece from hot-dip galvanised steel
• Bottom section from polyamide, black
Technical data
Technical data
| Ayırma plakası | no |
|---|---|
| Uyumluluk | max. FL30 mm |
| Boyut | 35mm |
| Surface | Hot-dip galvanised |
| Material | Steel |

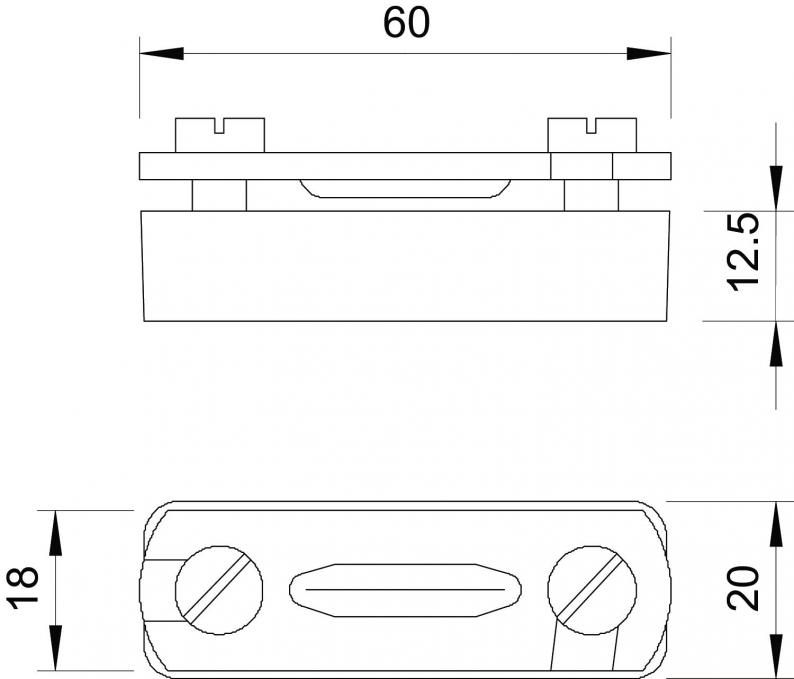

Dimensions
| Dimension B | 60 mm |
|---|
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,1183 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (1)
Product images (3)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Dimension B
Uyumluluk
Item no.
833 35
60
max. FL30
5033039
833 35
Item no.
5033039
Dimension B
60
Uyumluluk
max. FL30
