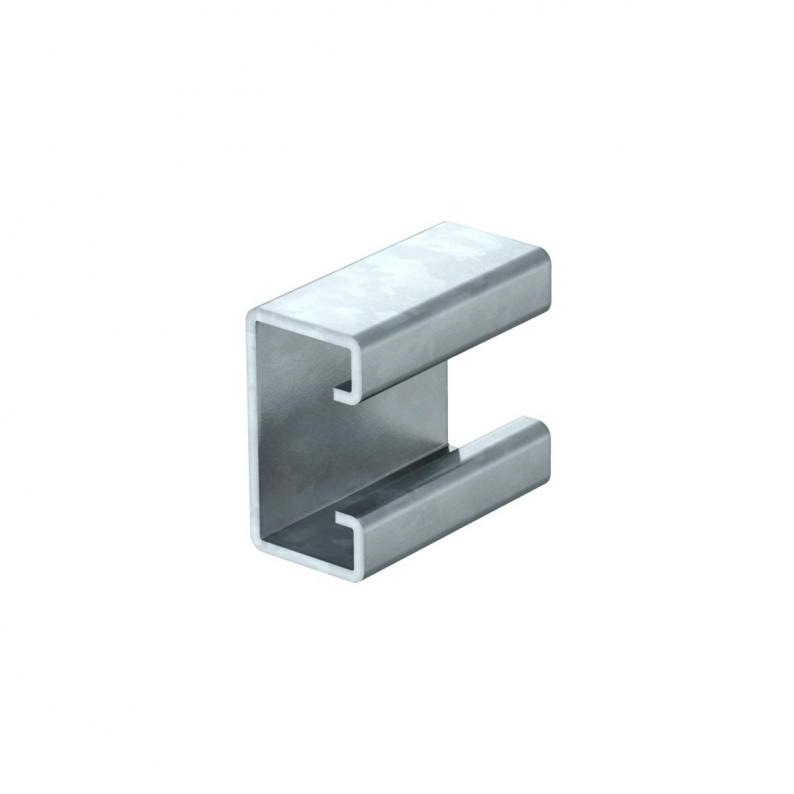

Spacer FT

Type DSK 25 FT
|
Item no. 6416446
|
EAN 4012196229277
Item no. / Type
6416446 / DSK 25 FT
Length
40 mm
Width
45 mm
Height
22,5 mm
Colour
zinc

Smallest selling unit: 20 piece

piece

Description

Spacer for use in US 3 supports. The spacer increases the stability of the U-profile and prevents deformation of the support when tightening continuous hexagonal bolts.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • U profil destek
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

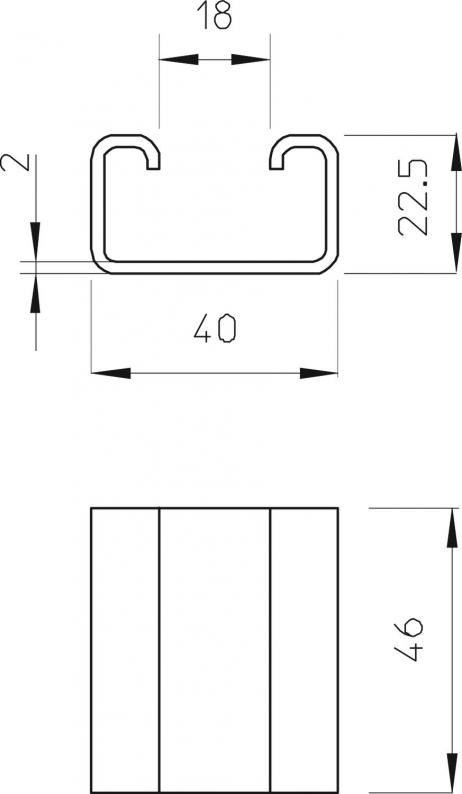

Dimensions

Length40 mm
Width45 mm
Height22,5 mm

Technical data

With screw accessoriesno
Ölçü46 x 40 x 22,5
Suitable for profile shapesU profile
Boyut46x40x22,5
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,1714 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (4)
Instructions and Aid (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

DSK 25 FT
Item no.
6416446
Length
40
Width
45
Height
22,5
Colour
Çinko grisi
