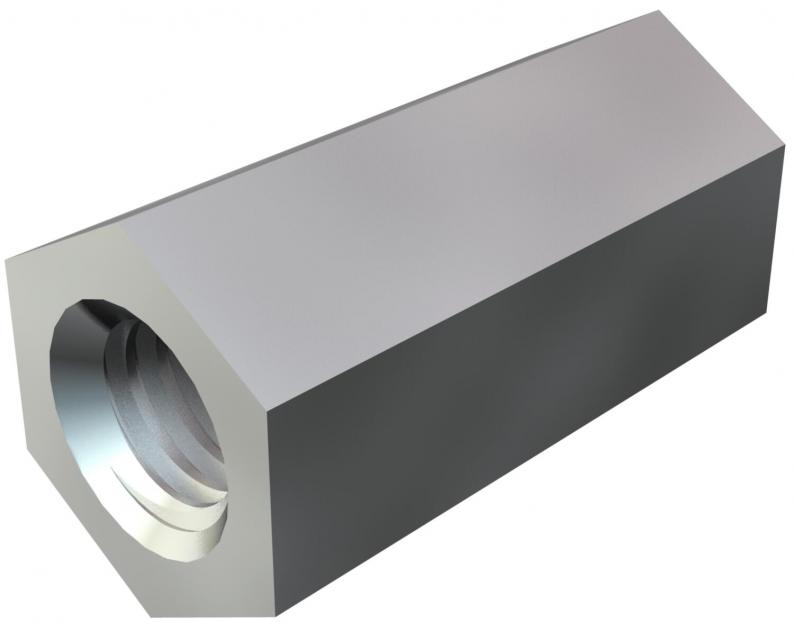

Spacer sleeve
Type 965 M6X20 G
|Item no. 3415031
|EAN 4012195303558
Item no. / Type
Length
Thread
WAF
Smallest selling unit: 100 piece
100piece
piece
Description
Continuous internal thread.
Technical data
Dimensions
| Length | 20 mm |
|---|---|
| Dimension L | 20 mm |
| Dimension 1, metric | 6 |
| Dimension 2, metric | 6 |
Technical data
| Thread | M6 |
|---|---|
| Continuous thread | yes |
| Hexagonal | yes |
| WAF | 10 |
| Shape | Hexagonal |
| Dimension | M6x20mm |
| Surface | Electrogalvanised |
| Material | Die-cast zinc |
Environmental Data
0,0438 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0438 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)
Variants
Type
Length
Thread
WAF
Item no.
965 M6X20 G
20
M6
10
3415031
965 M6X25 G
25
M6
10
3415066
965 M6X30 G
30
M6
10
3415082
965 M6X40 G
40
M6
10
3415104
965 M6X50 G
50
M6
10
3415120
965 M8X30 G
30
M8
13
3415163
Length
Thread
WAF
965 M6X20 G
Item no.
3415031
Length
20
Thread
M6
WAF
10
965 M6X25 G
Item no.
3415066
Length
25
Thread
M6
WAF
10
965 M6X30 G
Item no.
3415082
Length
30
Thread
M6
WAF
10
965 M6X40 G
Item no.
3415104
Length
40
Thread
M6
WAF
10
965 M6X50 G
Item no.
3415120
Length
50
Thread
M6
WAF
10
965 M8X30 G
Item no.
3415163
Length
30
Thread
M8
WAF
13
