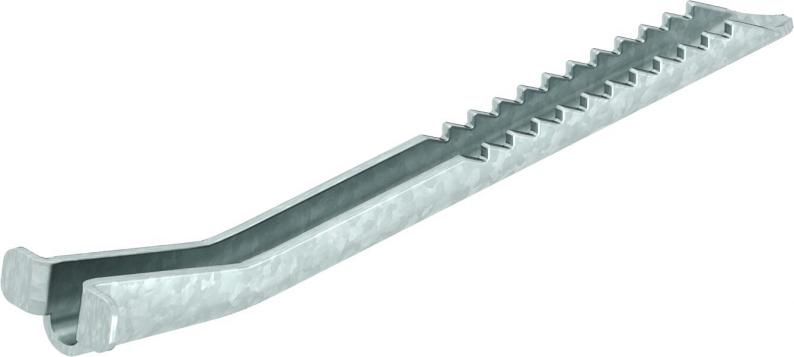

Splint for trapezoidal ceiling bracket FS
Type TPB R FS
|Item no. 6357536
|EAN 4012195523680
Item no. / Type
6357536 / TPB R FS
F in kN
0,8 kN
Smallest selling unit: 20 piece
20piece
piece
Description
Splint for fastening and securing the ceiling bracket to trapezoidal ceilings.
Important: Observe the statics of the trapezoidal metal ceiling.
Technical data

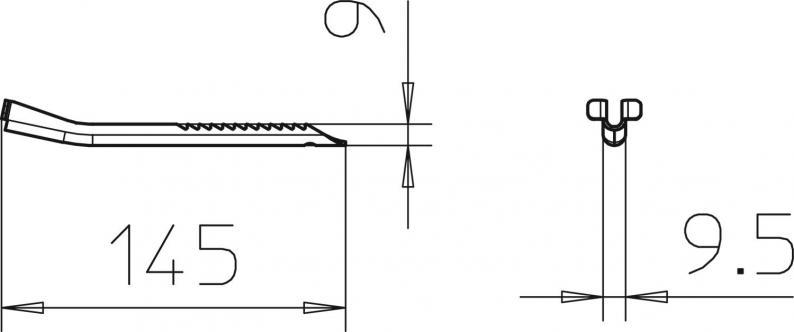

Dimensions
| Length | 145 mm |
|---|---|
| Width | 9,5 mm |
| Height | 22,5 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Material thickness | 1,5 mm |
| Adjustable | yes |
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Hinged | no |
| Breaking load | 0,8 kN |
| F in kN | 0,8 kN |
| Dimension | 145x10 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
0,1167 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1167 kg CO2e / 1 Piece |
|---|
