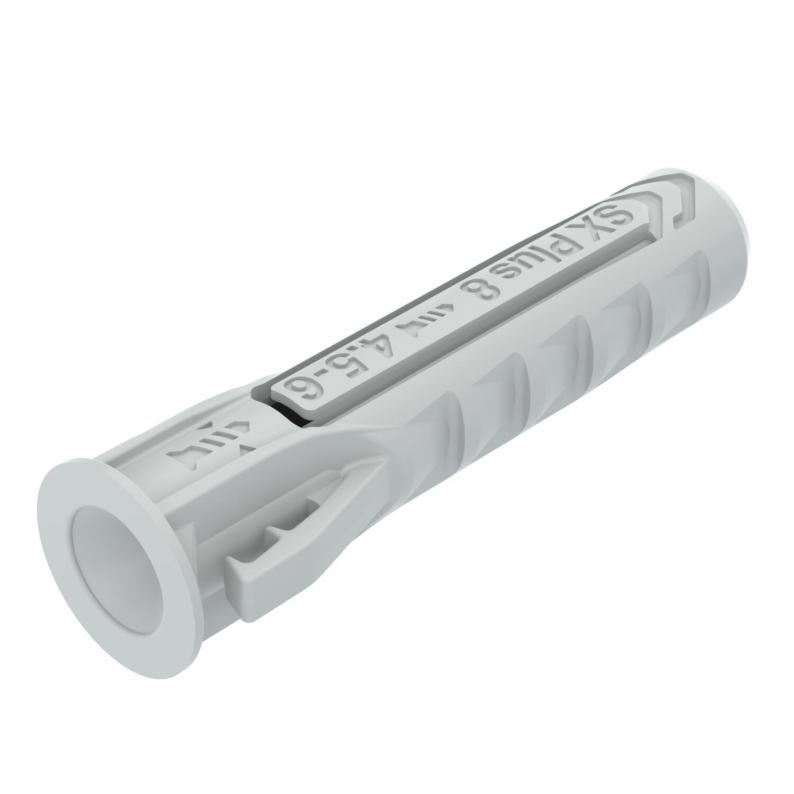

Spreading anchor, plastic
Type SX Plus 8x40
|Item no. 2347726
|EAN 4012197504687
Item no. / Type
2347726 / SX Plus 8x40
Length
40 mm
Diameter
8 mm
Drill hole diameter, min.
8 mm
Drill hole depth
50 mm
Smallest selling unit: 100 piece
100piece
piece
Description
Nylon spreading anchor for mounting components on walls and ceilings. Suitable for solid building materials such as concrete, sand-lime brick and masonry. With pre-fixing of the screw for easy overhead mounting. The given load values are valid for wood screws with the specified diameter.
Technical data

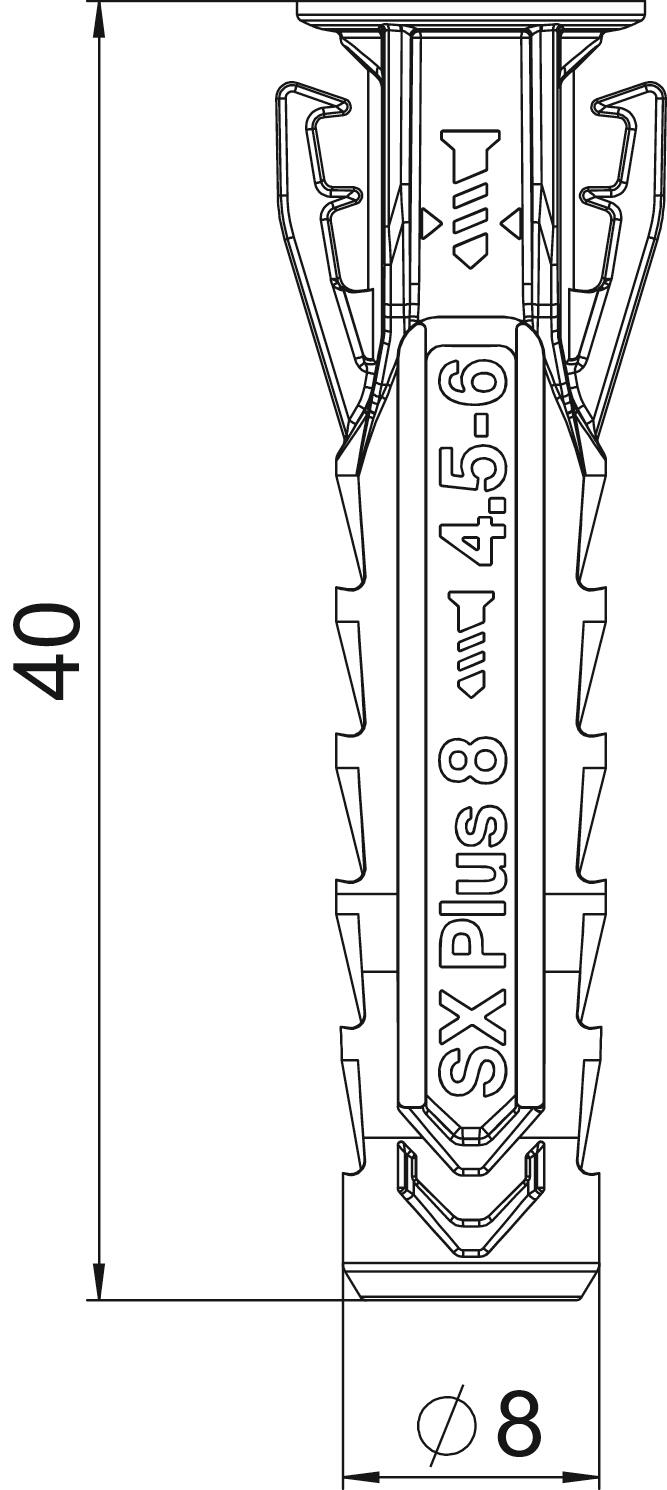

Dimensions
| Length | 40 mm |
|---|---|
| Dimension L | 40 mm |
| Dimension D | 8 mm |
Technical data
| Diameter | 8 mm |
|---|---|
| With bolts | no |
| Suitable for hexagonal wood screw | yes |
| Suitable for fastening with cable ties | no |
| Suitable for screw diameter, min. | 4,5 mm |
| Suitable for screw diameter, max. | 6 mm |
| Version for | Spreading anchor |
| Drill hole diameter, min. | 8 mm |
| Drill hole diameter, max. | 8 mm |
| Drill hole depth | 50 mm |
| Dimension | 8x40 |
| Material | Polyamide |
| Colour | Light grey |
| Suitable for material | Calcareous sandstone, Porous concrete, Concrete, Gas concrete, Plasterboard, Full brick, Hollow brick |
| Mounting type, anchor, tie | Push-through mounting, Pre-mounting |
