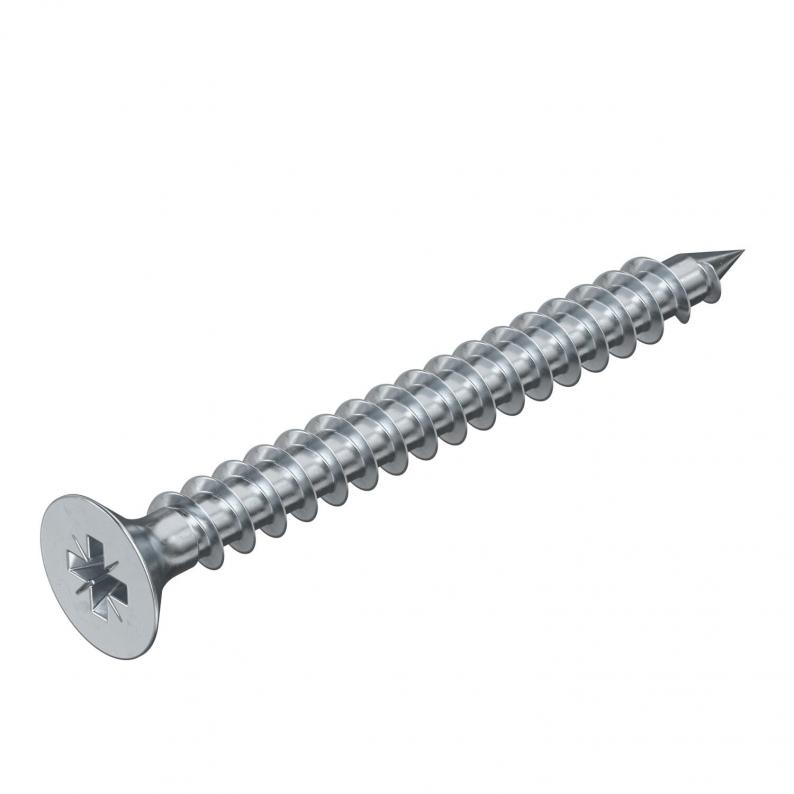

Sprint screw, with Philips slot

Sprint screw, with Philips slot

Type 4759 3.5x15
|
Item no. 3192091
|
EAN 4012195654612
Show all variants
Item no. / Type
Dimension L
Head diameter
Dimension D

Smallest selling unit: 200 piece

piece

Description

Sertleştirilmiş çelik, elektro galvaniz kaplama ve sarı kaplama, politetrafloretilen kaplama, yıldız yarık havşa başlı (Ø 6 mm Pozidrive Gr. 3 haricinde Pozidrive Gr. 2).
SPRINT vidaların kullanılması durumunda, geleneksel vidalar ile vidalama süreleri açısından karşılaştırıldığında daha kısa süreler elde edilmektedir. Görünür bu önemli avantajı, birinci vida dişine sahip vida ucunun, 2'nci vida dişine kılavuzluk etmesi sağlamaktadır. Kullanım alanları: Ahşap, sunta, Rigips alçı plakaları, plastik dübel.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • Pozidrive

Technical data

Dimensions

Length15 mm
Dimension L15 mm
Dimension D3,5 mm

Technical data

Hardenedevet
Screw systemPozidrive PZ
Head shapeCountersunk head
Head diameter6,5 mm
Boyut3,5x15mm
SurfaceElectrogalvanized
MaterialSteel

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
Tender specifications (1)

Variants

Dimension L
Head diameter
Dimension D
4759 3.5x15
Item no.
3192091
Dimension L
15
Head shape
Countersunk head
Head diameter
6,5
Dimension D
3,5
4759 3.5x25
Item no.
3192113
Dimension L
25
Head shape
Countersunk head
Head diameter
6,5
Dimension D
3,5
4759 3.5x30
Item no.
3192121
Dimension L
30
Head shape
Countersunk head
Head diameter
6,5
Dimension D
3,5
4759 3.5x35
Item no.
3192148
Dimension L
35
Head shape
Countersunk head
Head diameter
6,5
Dimension D
3,5
4759 3.5x40
Item no.
3192156
Dimension L
40
Head shape
Countersunk head
Head diameter
6,5
Dimension D
3,5
4759 3.5x50
Item no.
3192172
Dimension L
50
Head shape
Countersunk head
Head diameter
6,5
Dimension D
3,5
4759 4.0x15
Item no.
3192199
Dimension L
15
Head shape
Countersunk head
Head diameter
7,5
Dimension D
4
4759 4.0x25
Item no.
3192210
Dimension L
25
Head shape
Countersunk head
Head diameter
7,5
Dimension D
4
4759 4.0x30
Item no.
3192229
Dimension L
30
Head shape
Countersunk head
Head diameter
7,5
Dimension D
4
4759 4.0x35
Item no.
3192237
Dimension L
35
Head shape
Countersunk head
Head diameter
7,5
Dimension D
4
4759 4.0x40
Item no.
3192245
Dimension L
40
Head shape
Countersunk head
Head diameter
7,5
Dimension D
4
4759 4.0x45
Item no.
3192253
Dimension L
45
Head shape
Countersunk head
Head diameter
7,5
Dimension D
4
4759 4.0x50
Item no.
3192261
Dimension L
50
Head shape
Countersunk head
Head diameter
7,5
Dimension D
4
4759 4.5x30
Item no.
3192334
Dimension L
30
Head shape
Countersunk head
Head diameter
8,3
Dimension D
4,5
4759 4.5x35
Item no.
3192342
Dimension L
35
Head shape
Countersunk head
Head diameter
8,3
Dimension D
4,5
4759 4.5x40
Item no.
3192350
Dimension L
40
Head shape
Countersunk head
Head diameter
8,3
Dimension D
4,5
4759 4.5x45
Item no.
3192369
Dimension L
45
Head shape
Countersunk head
Head diameter
8,3
Dimension D
4,5
4759 4.5x50
Item no.
3192377
Dimension L
50
Head shape
Countersunk head
Head diameter
8,3
Dimension D
4,5
4759 5.0x30
Item no.
3192415
Dimension L
30
Head shape
Countersunk head
Head diameter
9,2
Dimension D
5
4759 5.0x35
Item no.
3192423
Dimension L
35
Head shape
Countersunk head
Head diameter
9,2
Dimension D
5
4759 5.0x40
Item no.
3192431
Dimension L
40
Head shape
Countersunk head
Head diameter
9,2
Dimension D
5
4759 5.0x45
Item no.
3192458
Dimension L
45
Head shape
Countersunk head
Head diameter
9,2
Dimension D
5
4759 5.0x50
Item no.
3192466
Dimension L
50
Head shape
Countersunk head
Head diameter
9,2
Dimension D
5
4759 6.0x40
Item no.
3192628
Dimension L
40
Head shape
Countersunk head
Head diameter
11
Dimension D
6
4759 6.0x50
Item no.
3192636
Dimension L
50
Head shape
Countersunk head
Head diameter
11
Dimension D
6
4759 6.0x60
Item no.
3192644
Dimension L
60
Head shape
Countersunk head
Head diameter
11
Dimension D
6
