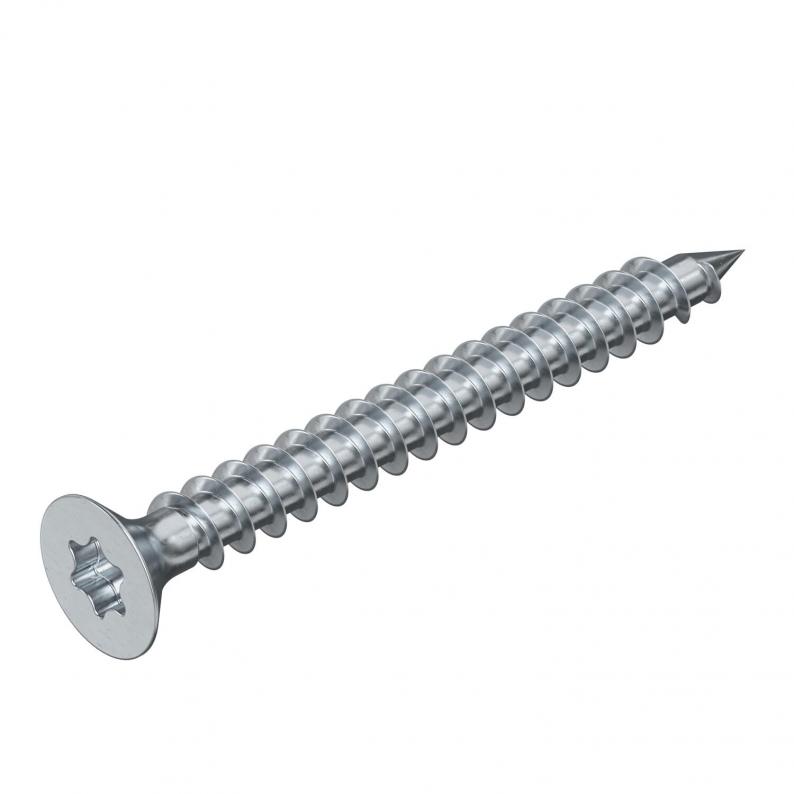

Sprint screw, with Torx

Sprint screw, with Torx

Type 4759T 3.0x15
|
Item no. 3198193
|
EAN 4012195797593
Show all variants
Item no. / Type
Dimension L
Head diameter
Dimension D

Smallest selling unit: 200 piece

piece

Description

Sertleştirilmiş çelik, elektro galvaniz kaplama ve sarı kaplama, politetrafloretilen kaplama, T-Bit (imbus) havşa başlı, Gr. Ø 3 mm T10, Ø 3,5 mm T15, Ø 4 ve 4,5 mm T20, Ø 5 mm T25.
SPRINT vidaların kullanılması durumunda, geleneksel vidalar ile vidalama süreleri açısından karşılaştırıldığında daha kısa süreler elde edilmektedir. Görünür bu önemli avantajı, birinci vida dişine sahip vida ucunun, 2'nci vida dişine kılavuzluk etmesi sağlamaktadır. Kullanım alanları: Ahşap, sunta, Rigips alçı plakaları, plastik dübel.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • Torx vida

Technical data

Dimensions

Length15 mm
Dimension L15 mm
Dimension D3 mm

Technical data

Hardenedevet
Screw systemTorx
Head shapeCountersunk head
Head diameter5,6 mm
Boyut3x15mm
SurfaceElectrogalvanized
MaterialSteel

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
Tender specifications (1)

Variants

Dimension L
Head diameter
Dimension D
4759T 3.0x15
Item no.
3198193
Dimension L
15
Head shape
Countersunk head
Head diameter
5,6
Dimension D
3
4759T 3.0x25
Item no.
3198197
Dimension L
25
Head shape
Countersunk head
Head diameter
5,6
Dimension D
3
4759T 3.0x30
Item no.
3198199
Dimension L
30
Head shape
Countersunk head
Head diameter
5,6
Dimension D
3
4759T 3.5x15
Item no.
3198219
Dimension L
15
Head shape
Countersunk head
Head diameter
6,5
Dimension D
3,5
4759T 3.5x20
Item no.
3198221
Dimension L
20
Head shape
Countersunk head
Head diameter
6,5
Dimension D
3,5
4759T 3.5x25
Item no.
3198223
Dimension L
25
Head shape
Countersunk head
Head diameter
6,5
Dimension D
3,5
4759T 3.5x30
Item no.
3198225
Dimension L
30
Head shape
Countersunk head
Head diameter
6,5
Dimension D
3,5
4759T 3.5x35
Item no.
3198227
Dimension L
35
Head shape
Countersunk head
Head diameter
6,5
Dimension D
3,5
4759T 3.5x40
Item no.
3198229
Dimension L
40
Head shape
Countersunk head
Head diameter
6,5
Dimension D
3,5
4759T 3.5x50
Item no.
3198231
Dimension L
50
Head shape
Countersunk head
Head diameter
6,5
Dimension D
3,5
4759T 4.0x15
Item no.
3198237
Dimension L
15
Head shape
Countersunk head
Head diameter
7,5
Dimension D
4
4759T 4.0x20
Item no.
3198239
Dimension L
20
Head shape
Countersunk head
Head diameter
7,5
Dimension D
4
4759T 4.0x25
Item no.
3198241
Dimension L
25
Head shape
Countersunk head
Head diameter
7,5
Dimension D
4
4759T 4.0x30
Item no.
3198243
Dimension L
30
Head shape
Countersunk head
Head diameter
7,5
Dimension D
4
4759T 4.0x35
Item no.
3198245
Dimension L
35
Head shape
Countersunk head
Head diameter
7,5
Dimension D
4
4759T 4.0x40
Item no.
3198247
Dimension L
40
Head shape
Countersunk head
Head diameter
7,5
Dimension D
4
4759T 4.0x45
Item no.
3198249
Dimension L
45
Head shape
Countersunk head
Head diameter
7,5
Dimension D
4
4759T 4.0x50
Item no.
3198251
Dimension L
50
Head shape
Countersunk head
Head diameter
7,5
Dimension D
4
4759T 4.5x35
Item no.
3198262
Dimension L
35
Head shape
Countersunk head
Head diameter
8,2
Dimension D
4,5
4759T 4.5x40
Item no.
3198264
Dimension L
40
Head shape
Countersunk head
Head diameter
8,2
Dimension D
4,5
4759T 4.5x45
Item no.
3198266
Dimension L
45
Head shape
Countersunk head
Head diameter
8,2
Dimension D
4,5
4759T 4.5x50
Item no.
3198268
Dimension L
50
Head shape
Countersunk head
Head diameter
8,2
Dimension D
4,5
4759T 5.0x30
Item no.
3198276
Dimension L
30
Head shape
Countersunk head
Head diameter
9,2
Dimension D
5
4759T 5.0x35
Item no.
3198278
Dimension L
35
Head shape
Countersunk head
Head diameter
9,2
Dimension D
5
4759T 5.0x40
Item no.
3198280
Dimension L
40
Head shape
Countersunk head
Head diameter
9,2
Dimension D
5
4759T 5.0x45
Item no.
3198282
Dimension L
45
Head shape
Countersunk head
Head diameter
9,2
Dimension D
5
4759T 5.0x50
Item no.
3198284
Dimension L
50
Head shape
Countersunk head
Head diameter
9,2
Dimension D
5
