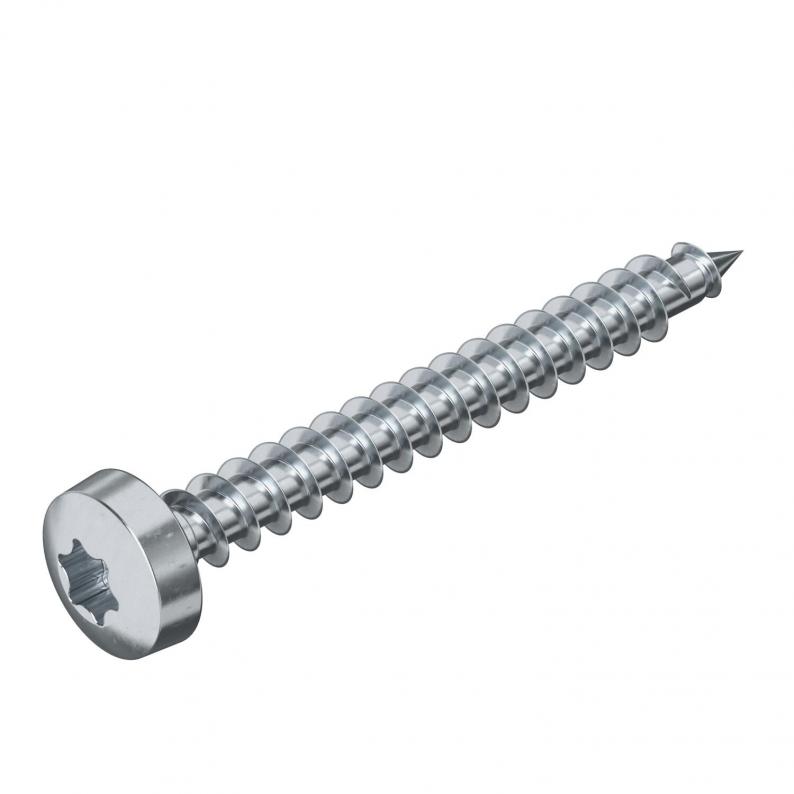

Sprint screw, with Torx

Type 4758T 3.5x20
|
Item no. 3198018
|
EAN 4012195552079
Item no. / Type
Dimension L
Head diameter
Dimension D

Smallest selling unit: 200 piece

piece

Description

Hardened steel, electrogalvanised and Hostaflon-coated. Pan head with T bit (Allen head), sizes Ø 3 mm T10, Ø 3.5 mm T15, Ø 4 and 4.5 mm T20, Ø 5 mm T25.

The use of Sprint screws leads to considerably reduced screw-in times compared with standard screws. This noticeable advantage comes from the point with the first thread, which leads on to the double thread beyond.

Areas of use: wood, chipboard, Rigips panels, plastic anchors.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • RoHS-conformant
  • Torx screw

Technical data

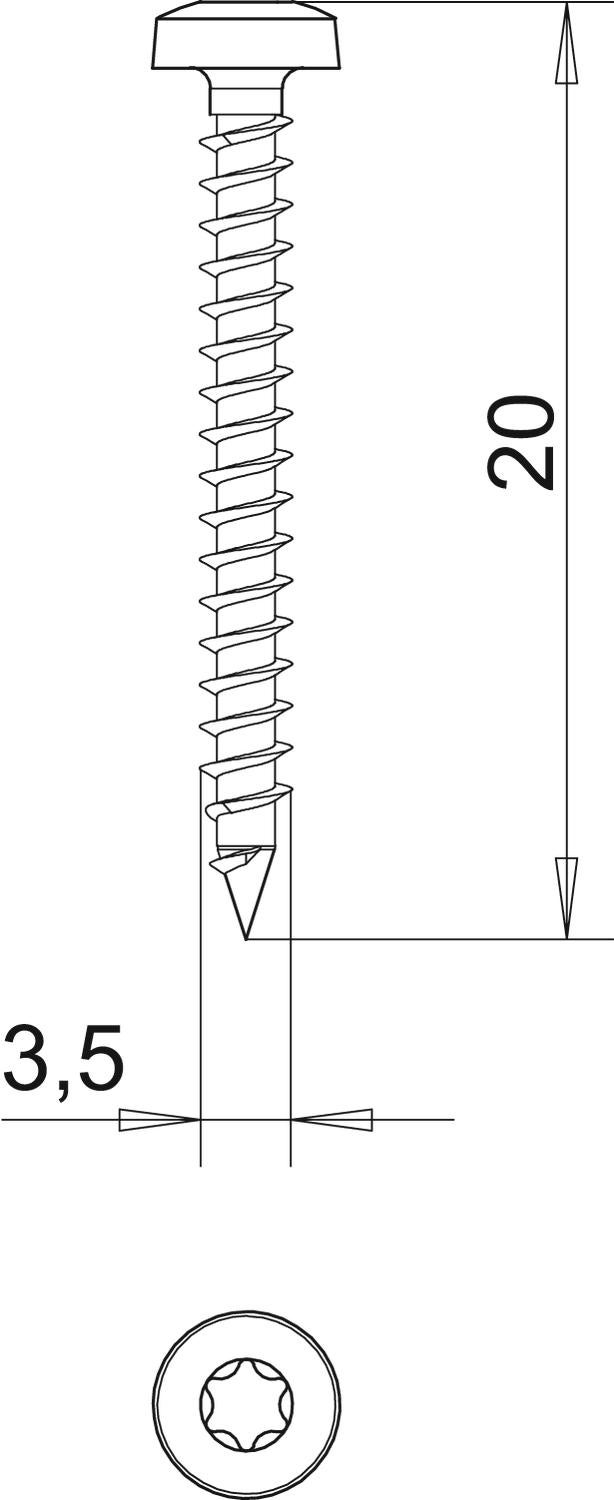

Dimensions

Length20 mm
Dimension L20 mm
Dimension D3,5 mm

Technical data

Hardenedyes
Two-compartmentyes
Screw systemTorx
Head shapePanhead
Thickness3,5 mm
Head diameter6,5 mm
Dimension3,5x20mm
SurfaceElectrogalvanised
MaterialSteel

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
Tender specifications (1)

Variants

Dimension L
Head diameter
Dimension D
4758T 3.5x20
Item no.
3198018
Dimension L
20
Head shape
Panhead
Head diameter
6,5
Dimension D
3,5
4758T 3.5x25
Item no.
3198020
Dimension L
25
Head shape
Panhead
Head diameter
6,5
Dimension D
3,5
4758T 3.5x30
Item no.
3198022
Dimension L
30
Head shape
Panhead
Head diameter
6,5
Dimension D
3,5
4758T 3.5x35
Item no.
3198024
Dimension L
35
Head shape
Panhead
Head diameter
6,5
Dimension D
3,5
4758T 3.5x40
Item no.
3198026
Dimension L
40
Head shape
Panhead
Head diameter
6,5
Dimension D
3,5
4758T 4.0x15
Item no.
3198030
Dimension L
15
Head shape
Panhead
Head diameter
7,5
Dimension D
4
4758T 4.0x20
Item no.
3198032
Dimension L
20
Head shape
Panhead
Head diameter
7,5
Dimension D
4
4758T 4.0x25
Item no.
3198034
Dimension L
25
Head shape
Panhead
Head diameter
7,5
Dimension D
4
4758T 4.0x30
Item no.
3198036
Dimension L
30
Head shape
Panhead
Head diameter
7,5
Dimension D
4
4758T 4.0x35
Item no.
3198038
Dimension L
35
Head shape
Panhead
Head diameter
7,5
Dimension D
4
4758T 4.0x40
Item no.
3198040
Dimension L
40
Head shape
Panhead
Head diameter
7,5
Dimension D
4
4758T 4.0x45
Item no.
3198042
Dimension L
45
Head shape
Panhead
Head diameter
7,5
Dimension D
4
4758T 4.0x50
Item no.
3198044
Dimension L
50
Head shape
Panhead
Head diameter
7,5
Dimension D
4
4758T 4.5x30
Item no.
3198054
Dimension L
30
Head shape
Panhead
Head diameter
8,2
Dimension D
4,5
4758T 4.5x35
Item no.
3198056
Dimension L
35
Head shape
Panhead
Head diameter
8,2
Dimension D
4,5
4758T 4.5x40
Item no.
3198058
Dimension L
40
Head shape
Panhead
Head diameter
8,2
Dimension D
4,5
4758T 4.5x45
Item no.
3198060
Dimension L
45
Head shape
Panhead
Head diameter
8,2
Dimension D
4,5
4758T 4.5x50
Item no.
3198062
Dimension L
50
Head shape
Panhead
Head diameter
8,2
Dimension D
4,5
4758T 5.0x30
Item no.
3198073
Dimension L
30
Head shape
Panhead
Head diameter
9,5
Dimension D
5
4758T 5.0x35
Item no.
3198075
Dimension L
35
Head shape
Panhead
Head diameter
9,5
Dimension D
5
4758T 5.0x40
Item no.
3198077
Dimension L
40
Head shape
Panhead
Head diameter
9,5
Dimension D
5
4758T 5.0x50
Item no.
3198081
Dimension L
50
Head shape
Panhead
Head diameter
9,5
Dimension D
5
