Sprung cover, 80 mm

Sprung cover, 80 mm

Type UV 80 FD
|
Item no. 2004634
|
EAN 4012195291909
Show all variants
Item no. / Type
2004634 / UV 80 FD

Smallest selling unit: 25 piece

piece

Description

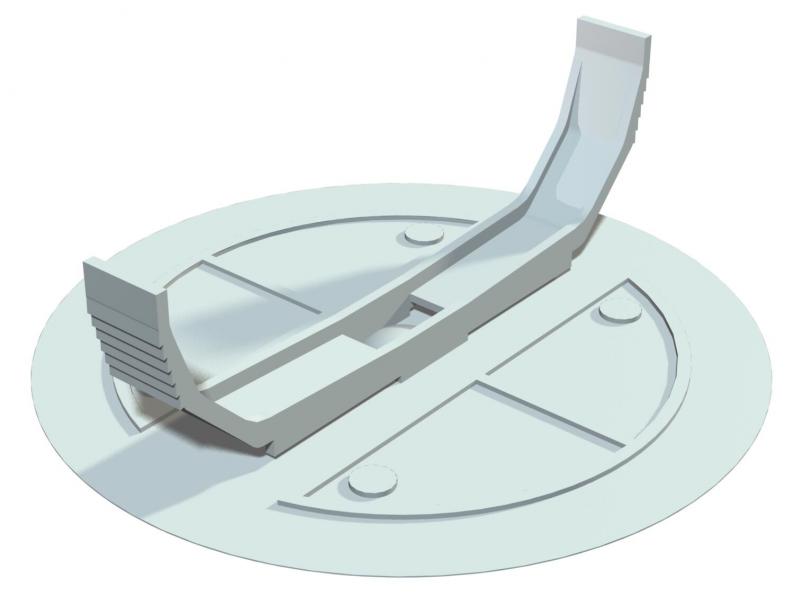

Sprung cover with centrally moulded, elastic spreading spring, for sockets with Ø 80 mm, cover edge is flush, surface is roughened.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Diameter 80 mm
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

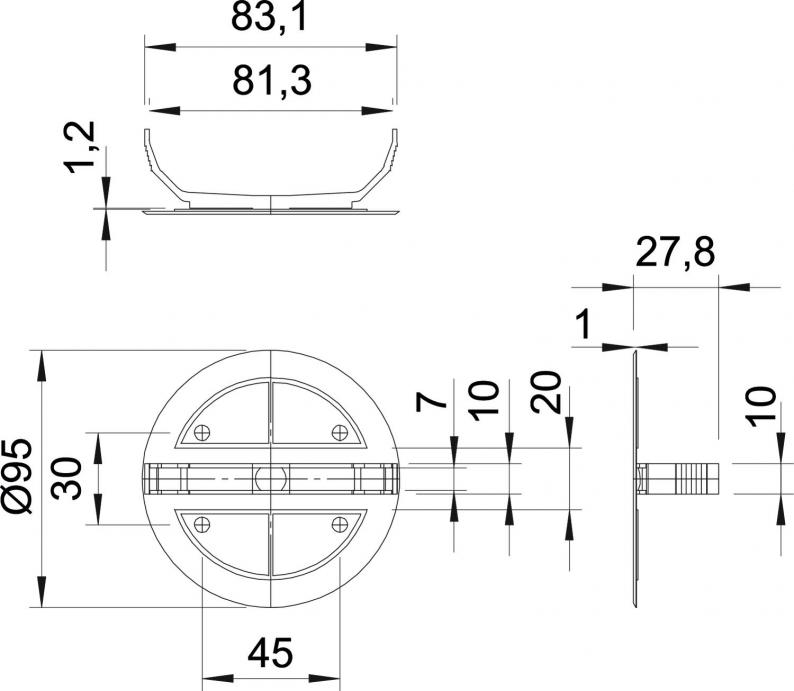

Dimensions

Height1 mm

Technical data

Diameter80 mm
Halogen-freeyes
Sealableno
With boltsno
Fastening typeSpring cover
ShapeRound
Flame-resistantAcc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C
DimensionØ95mm
MaterialPolystyrene
ColourWhite

Environmental Data

0,0415 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
CO2 Footprint (GWP) Cradle-to-Gate0,0415 kg CO2e / 1 Piece
