Stainless steel pipe, V2A
Type S16W A2
|Item no. 2046720
|EAN 4012195923640
Item no. / Type
Ölçü M (mm)
Smallest selling unit: 30 m
30m
m
Description
Electrical installation pipe without threaded ends to EN 61386-1 for mechanical protection of cables. With burr-free inner wall. Corrosion protection class 4 (high).
Classification according to DIN EN 61386-1: 555711404010
Classification according to DIN EN 61386-1: 555711404010
Technical data

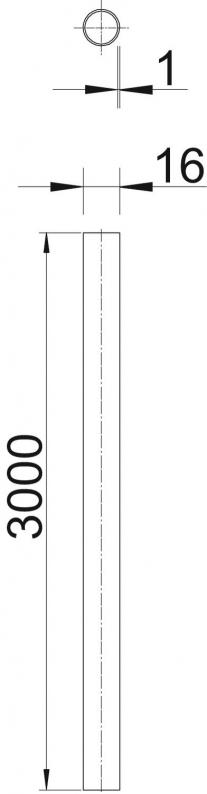

Dimensions
| Length | 3000 mm |
|---|---|
| Dimension L | 3000 mm |
| Dimension t | 1 mm |
| Ölçü M (mm) | M16 |
| Dimension D | 16 mm |
Technical data
| Yüzey parlatılmış | hayır |
|---|---|
| Classification code | 55571 |
| Pipe version | Rigid without thread |
| Sıva altı | evet |
| Sıva üstü | evet |
| Beton tesisatı | evet |
| Machines and system installation | evet |
| Döşeme altı tesisat (bitümen, sıcak asfalt) | evet |
| Döşeme altı tesisat (Zemin) | evet |
| Açık alanlarda kurulum | evet |
| Ahşap üzerine kurulum | evet |
| Cavity wall installation | evet |
| Toprak içinde kurulum | evet |
| With sleeve | hayır |
| Brushed surface | evet |
| Kullanılabilir sıcaklık aralığı min. | -45 °C |
| Kullanılabilir sıcaklık aralığı maks. | 400 °C |
| Boyut | Ø16, 3000mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Connection 1, installation pipe | Pipe end |
| Connection 2, installation pipe | Pipe end |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,6153 kg CO2e / 1 Metre |
|---|
Accessories
Mounting accessories
System accessories
Article
Type
Item no.
Amount
129 TB M16
2047812
Smallest selling unit: 50 piece
50piece
piece
Item no. 2047812
Pipe end cap, splittable, metric, light greyType
129 TB M16
Smallest selling unit: 50 piece
50piece
piece
