Steel wire tensioning rope G
Type 957 2 G
|Item no. 5303202
|EAN 4012195464273
Item no. / Type
Cable diameter
Halkalar şeklinde
Smallest selling unit: 50 m
50m
m
Description

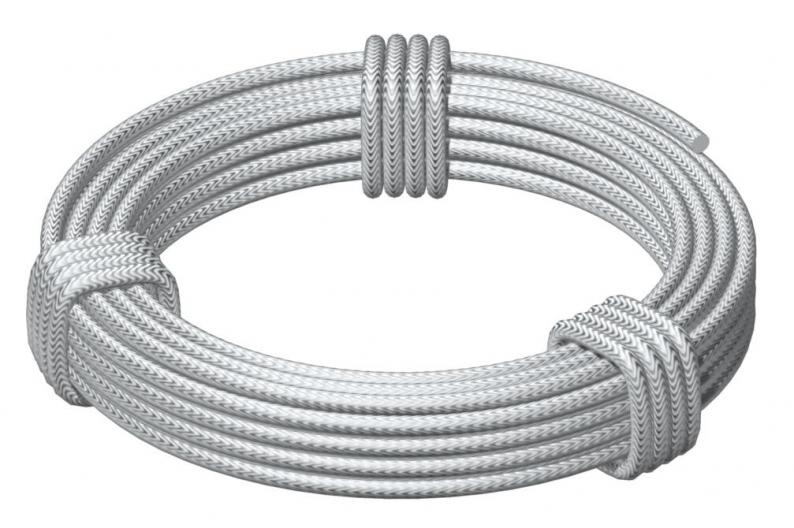

Steel wire tensioning rope, galvanised with fibre inlay (hemp core).

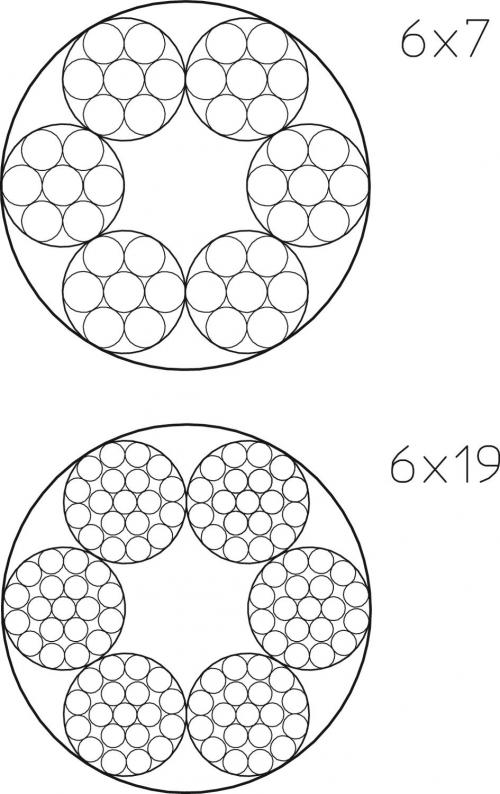

Cable Ø 2‒6 mm: round-stranded cable 6 x 7 according to DIN 3055.
Cable Ø 8‒10 mm: round-stranded cable 6 x19 according to DIN 3060.
Minimum break force 1770 N/mm².
Cable Ø 2‒6 mm: round-stranded cable 6 x 7 according to DIN 3055.
Cable Ø 8‒10 mm: round-stranded cable 6 x19 according to DIN 3060.
Minimum break force 1770 N/mm².
Technical data
Technical data
| Cable diameter | 2 mm |
|---|---|
| Kırılma yükü | 2,35 kN |
| Halkalar şeklinde | 50 m |
| Boyut | 2mm |
| Surface | Electrogalvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (3)
Tender specifications (1)
Variants
Type
Cable diameter
Halkalar şeklinde
Item no.
957 2 G
2
50
5303202
957 3 G
3
50
5303206
957 4 G
4
50
5303214
957 5 G
5
50
5303222
957 6 G
6
50
5303230
957 8 G
8
50
5303257
957 10 G
10
50
5303265
Cable diameter
957 2 G
Item no.
5303202
Cable diameter
2
Halkalar şeklinde
50
957 3 G
Item no.
5303206
Cable diameter
3
Halkalar şeklinde
50
957 4 G
Item no.
5303214
Cable diameter
4
Halkalar şeklinde
50
957 5 G
Item no.
5303222
Cable diameter
5
Halkalar şeklinde
50
957 6 G
Item no.
5303230
Cable diameter
6
Halkalar şeklinde
50
957 8 G
Item no.
5303257
Cable diameter
8
Halkalar şeklinde
50
957 10 G
Item no.
5303265
Cable diameter
10
Halkalar şeklinde
50
