Straight and angle connector 110 A2
Type RLVL 110 A2
|Item no. 6067948
|EAN 4012196400690
Item no. / Type
6067948 / RLVL 110 A2
Width
4 mm
Height
110 mm
Colour
stainless steel
Smallest selling unit: 10 piece
10piece
piece
Description

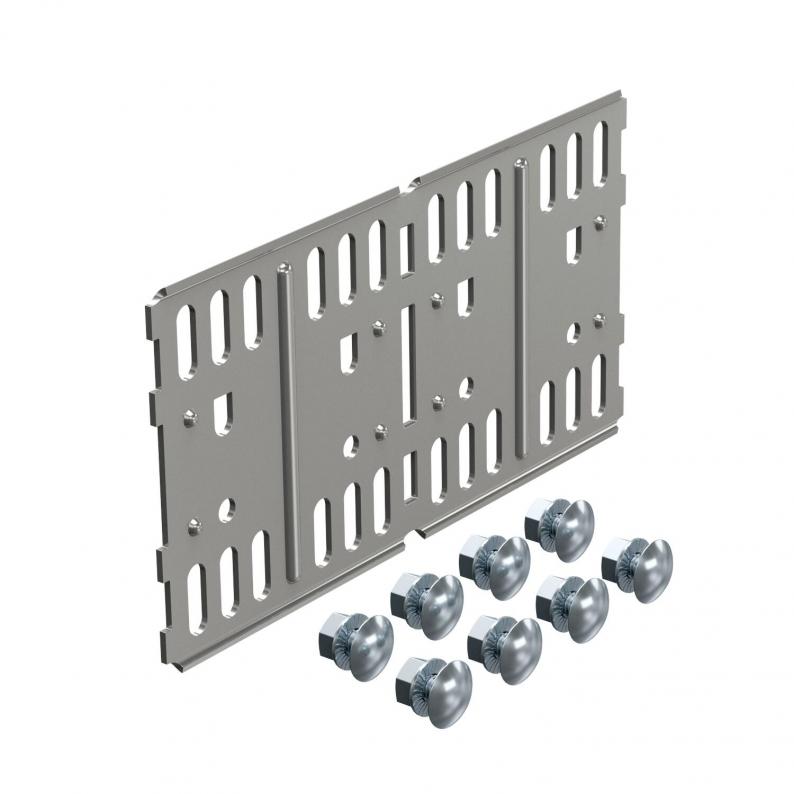

Straight and angle connector for cable trays and fittings with a side height of 110 mm.
Technical data
Dimensions
| Length | 200 mm |
|---|---|
| Width | 4 mm |
| Height | 110 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Paslanmaz çelik, mordanlı | no |
| Kafes kablo kanalı için uygun | no |
| Kablo merdiveni için uygun | no |
| Kablo kanalı için uygun | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Suitable for cable tray system height | 110 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Boyut | 110x200 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 1,9677 kg CO2e / 1 Piece |
|---|
