Straight and angle connector 60 FT
Type WKV 60 FT
|Item no. 6042910
|EAN 4012196990382
Item no. / Type
6042910 / WKV 60 FT
Height
62 mm
Plate thickness
1,25 mm
Smallest selling unit: 5 piece
5piece
piece
Description
Angle connector for cable trays with a side height of 60 mm.
Including appropriate fastening material.
Technical data

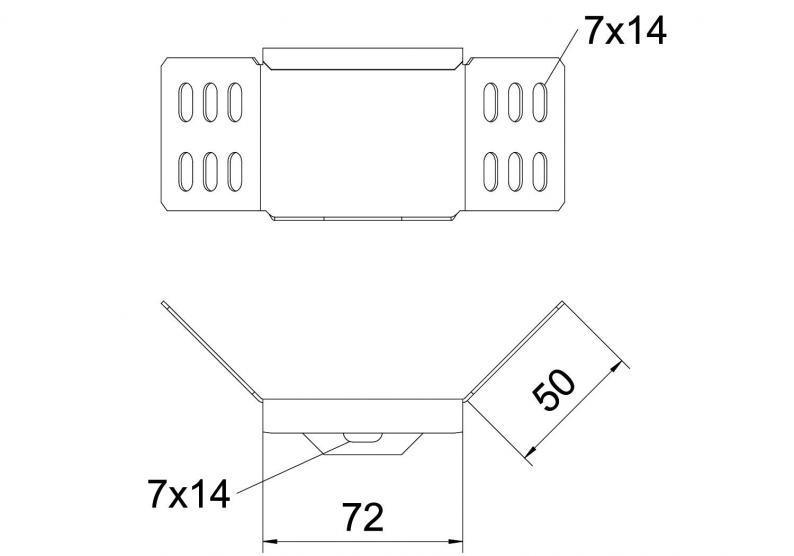

Dimensions
| Length | 72 mm |
|---|---|
| Width | 50 mm |
| Height | 62 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 1,25 mm |
| Kafes kablo kanalı için uygun | no |
| Kablo merdiveni için uygun | no |
| Kablo kanalı için uygun | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Suitable for cable tray system height | 60 mm |
| Version for | Angle connector |
| Connection type | Screw connector |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,4493 kg CO2e / 1 Piece |
|---|
