Straight and angle connector A2
Type LWVG 110 A2
|Item no. 6216590
|EAN 4012195065708
Item no. / Type
6216590 / LWVG 110 A2
Height
110 mm
Plate thickness
1,5 mm
Smallest selling unit: 10 piece
10piece
piece
Description

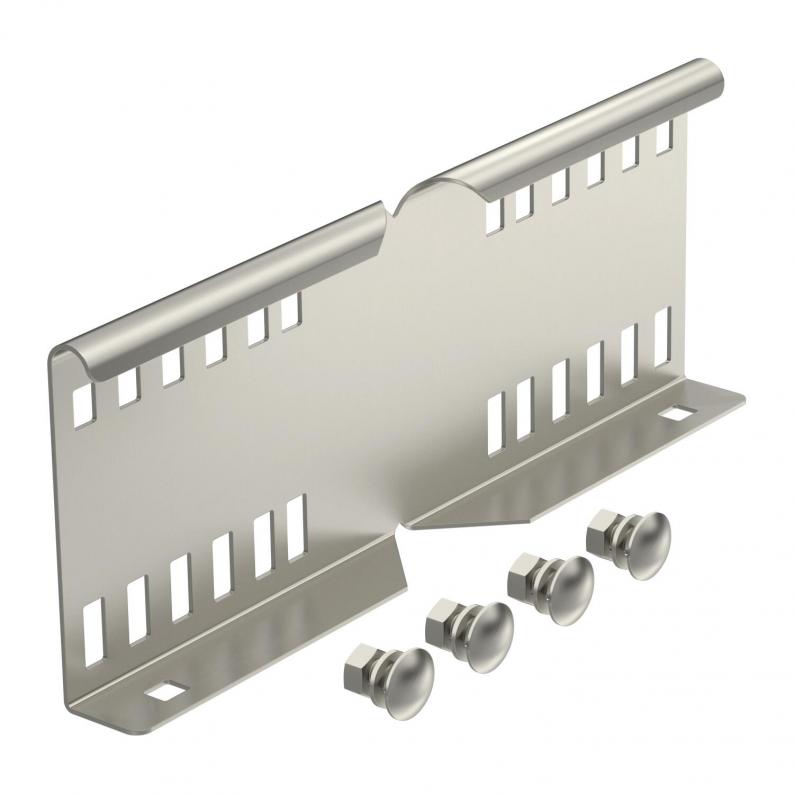

Angle connector as external connector to join cable ladders and fittings with a side height of 110 mm and continuous rail perforation.
The bolt fastening ensures the continuity of the equipotential bonding.
Technical data

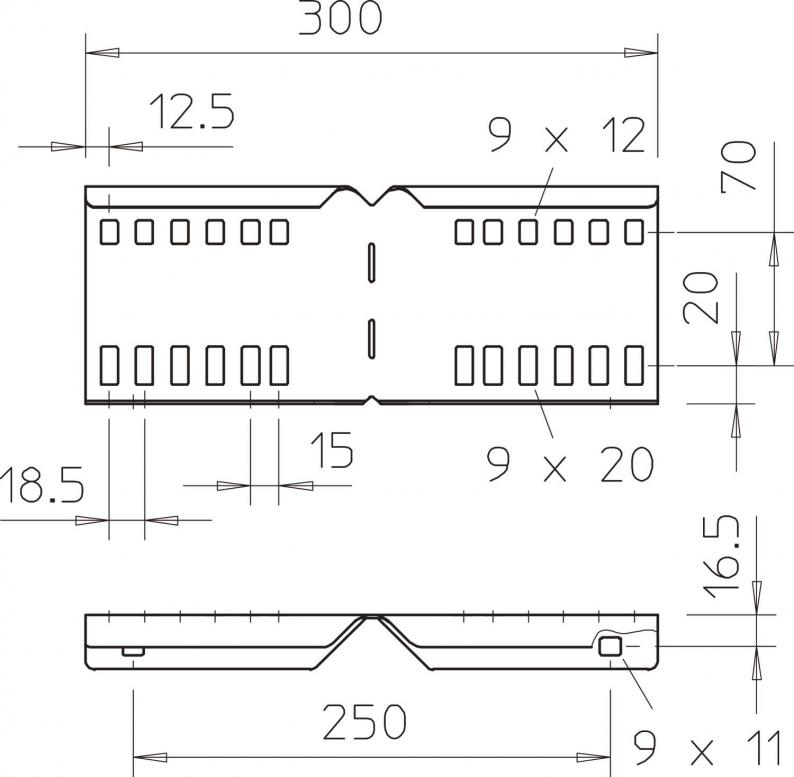

Dimensions
| Length | 300 mm |
|---|---|
| Width | 28 mm |
| Height | 110 mm |
Technical data
| Paslanmaz çelik, mordanlı | no |
|---|---|
| Plate thickness | 1,5 mm |
| Kafes kablo kanalı için uygun | no |
| Kablo merdiveni için uygun | yes |
| Kablo kanalı için uygun | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Ölçü | 114x300 |
| Suitable for cable tray system height | 110 mm |
| Version for | Angle connector |
| Connection type | Screw connector |
| Boyut | 114x300 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 3,0058 kg CO2e / 1 Piece |
|---|
