Straight and angle connector FS

Straight and angle connector FS

Type WKV 35 FS
|
Item no. 6043038
|
EAN 4012196050116
Show all variants
Item no. / Type
6043038 / WKV 35 FS
Height
35 mm
Plate thickness
1,25 mm

Smallest selling unit: 5 piece

piece

Description

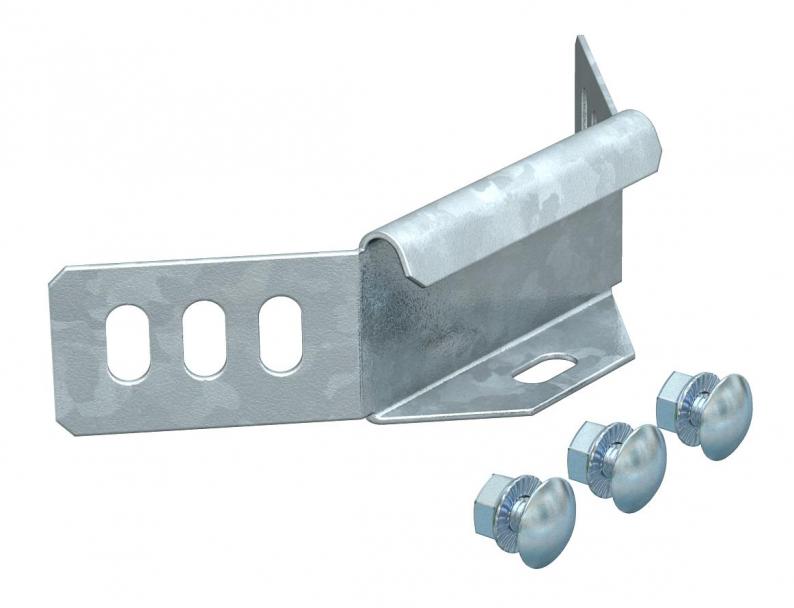

Angle connector for cable trays with a side height of 35 mm.

Including appropriate fastening material.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length145 mm
Width55 mm
Height35 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Plate thickness1,25 mm
Suitable for mesh cable trayno
Suitable for cable ladderno
Suitable for cable trayyes
Adjustable connector, horizontalno
Articulated connector, verticalno
Suitable for cable tray system height35 mm
Version forAngle connector
Connection typeScrew connector
SurfaceStrip galvanised
MaterialSteel
Colourzinc

Environmental Data

0,324 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,324 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,324 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1
