Straight and angle connector FS
Type RWVL 35 FS
|Item no. 6067107
|EAN 4012196065479
Item no. / Type
6067107 / RWVL 35 FS
Width
4 mm
Height
31 mm
Plate thickness
2 mm
Colour
zinc
Smallest selling unit: 10 piece
10piece
piece
Description

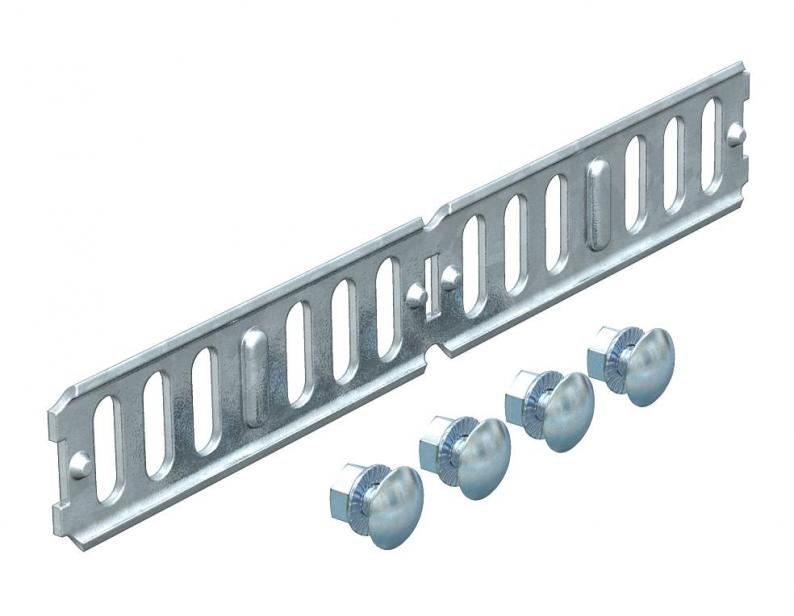

Straight and angle connector for cable trays and fittings with a side height of 35 mm.
Including appropriate fastening material.
Technical data

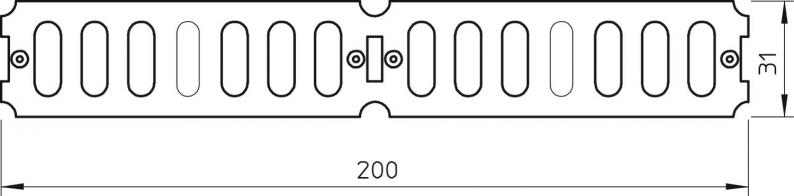

Dimensions
| Length | 200 mm |
|---|---|
| Width | 4 mm |
| Height | 31 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 2 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 200 x 31 |
| Suitable for cable tray system height | 35 mm |
| Version for | Angle connector |
| Connection type | Screw connector |
| Dimension | 35x200 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
0,2979 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2979 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,2979 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
