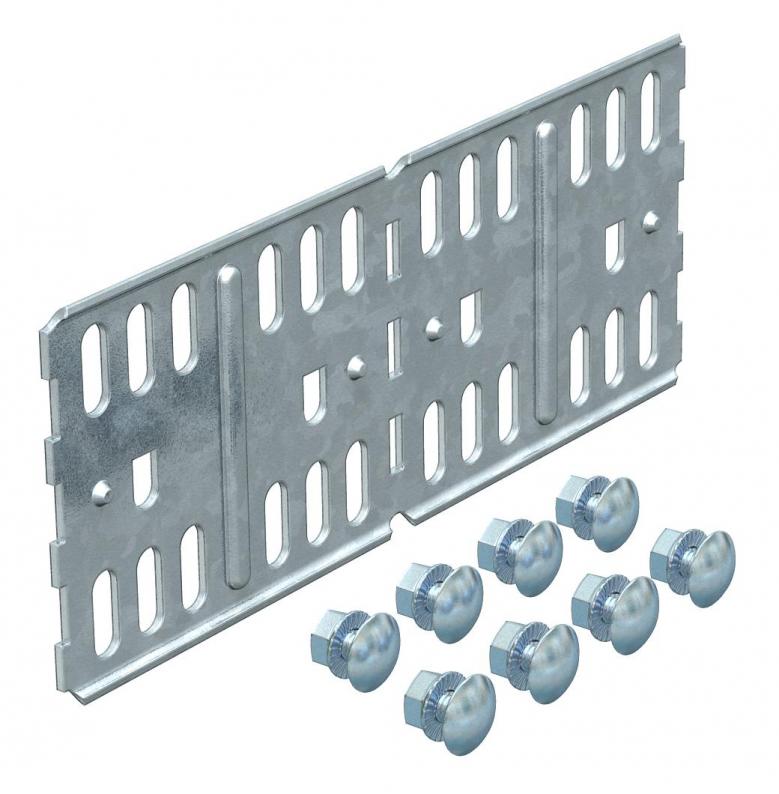

Straight and angle connector FT

Type RLVL 85 FT
|
Item no. 6067816
|
EAN 4012196066131
Item no. / Type
6067816 / RLVL 85 FT
Width
4 mm
Height
85 mm
Plate thickness
2 mm
Colour
zinc

Smallest selling unit: 10 piece

piece

Description

For straight connections of cable trays, fittings and barrier strips (FT) with a side height of 85 mm.

Including appropriate fastening material.

  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length200 mm
Width4 mm
Height85 mm

Technical data

Maintain electrical functionsno
Paslanmaz çelik, mordanlıno
Plate thickness2 mm
Kafes kablo kanalı için uygunno
Kablo merdiveni için uygunno
Kablo kanalı için uygunyes
Adjustable connector, horizontalno
Articulated connector, verticalno

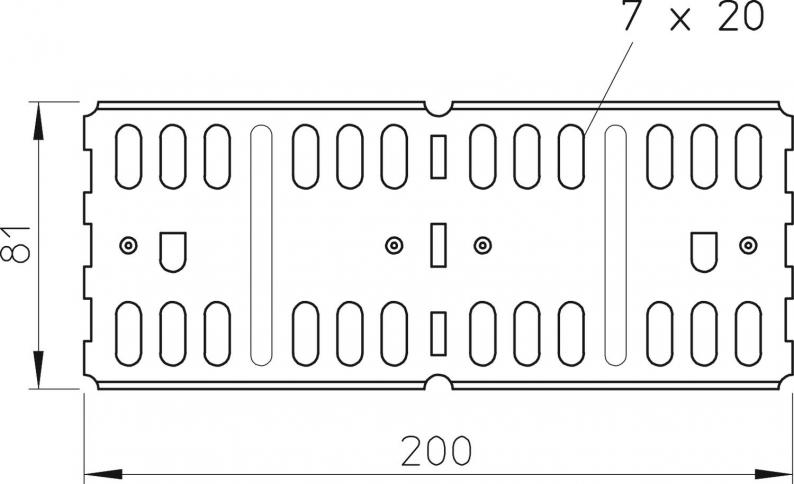

Ölçü200 x 81
Suitable for cable tray system height85 mm
Version forStraight and angle connector
Connection typeScrew connector
Boyut85x200
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

Packaging made completely from recycled cardboard.yes
CO2 ayak izi (GWP) beşikten kapıya0,6761 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

RLVL 85 FT
Item no.
6067816
Width
4
Height
85
Plate thickness
2
Colour
Çinko grisi
