Straight connector
Type WRV 200 FT
|Item no. 6232507
|EAN 4012196175574
Item no. / Type
6232507 / WRV 200 FT
Height
200 mm
Plate thickness
2,5 mm
Smallest selling unit: 4 piece
4piece
piece
Description

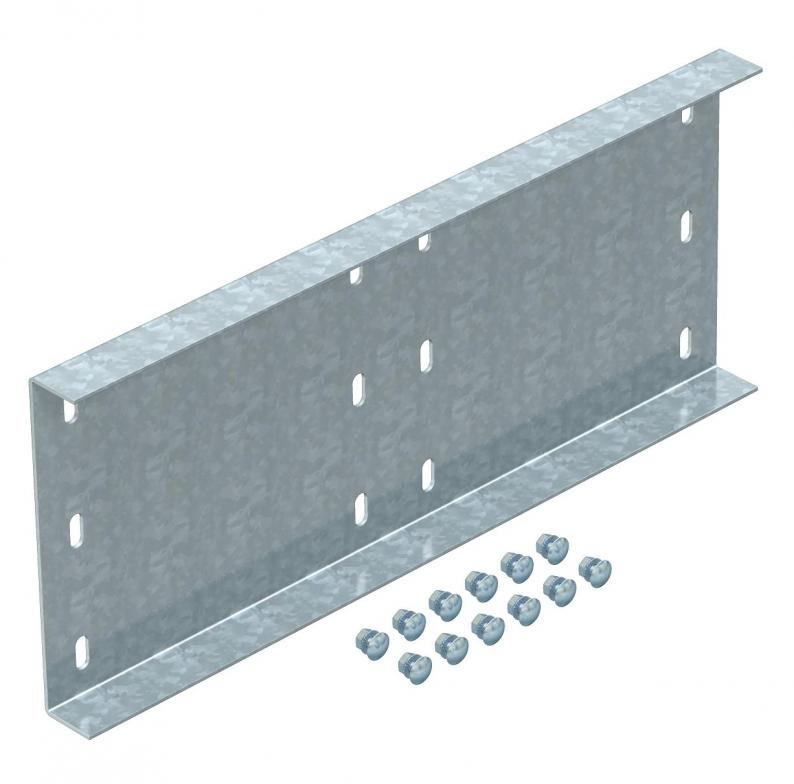

Straight connector for connections of wide span cable ladders and fittings with a side height of 200 mm.
Including appropriate bolts, washers and nuts.
Technical data

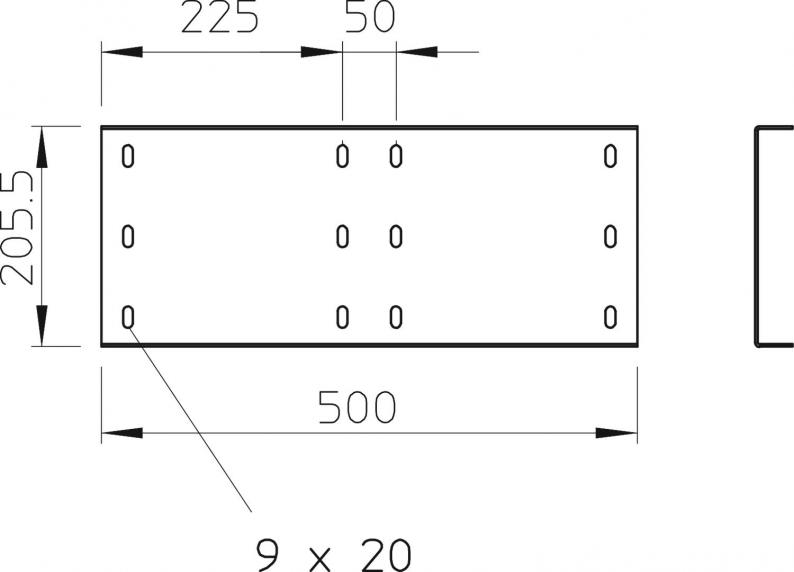

Dimensions
| Length | 500 mm |
|---|---|
| Width | 20 mm |
| Height | 200 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 2,5 mm |
| Kafes kablo kanalı için uygun | no |
| Kablo merdiveni için uygun | yes |
| Kablo kanalı için uygun | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Suitable for cable tray system height | 200 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Boyut | 200x500 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 8,6288 kg CO2e / 1 Piece |
|---|
